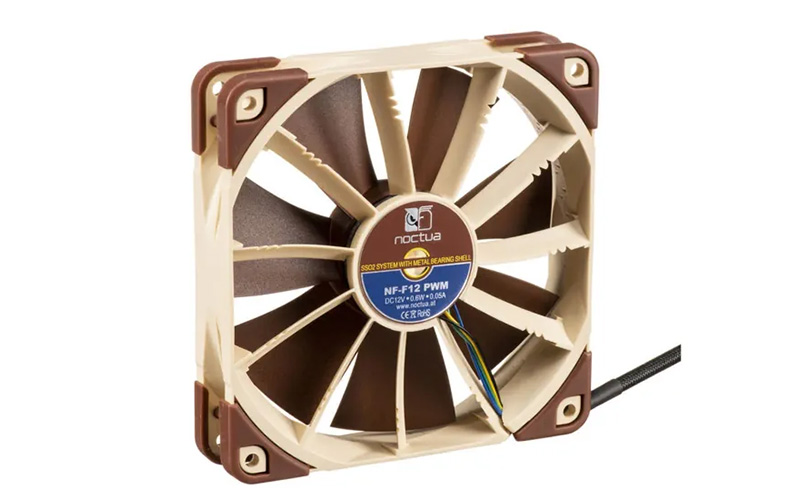

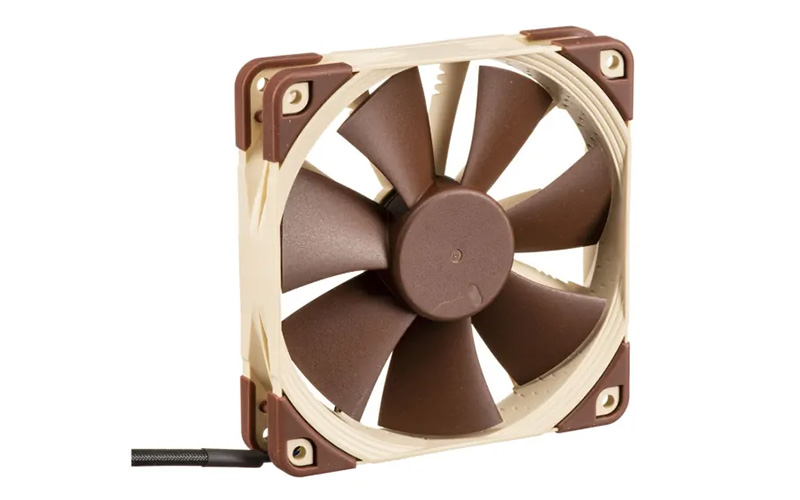

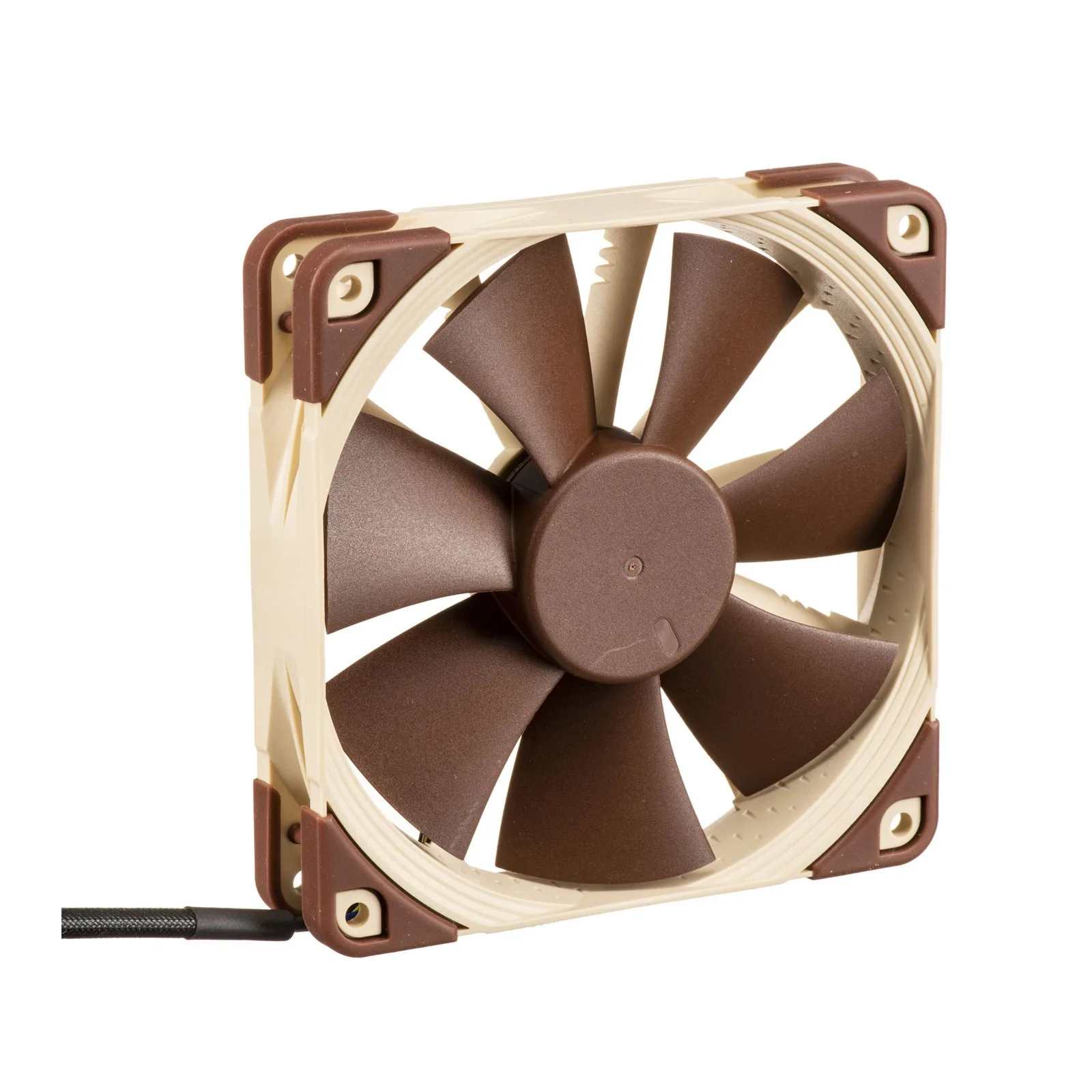

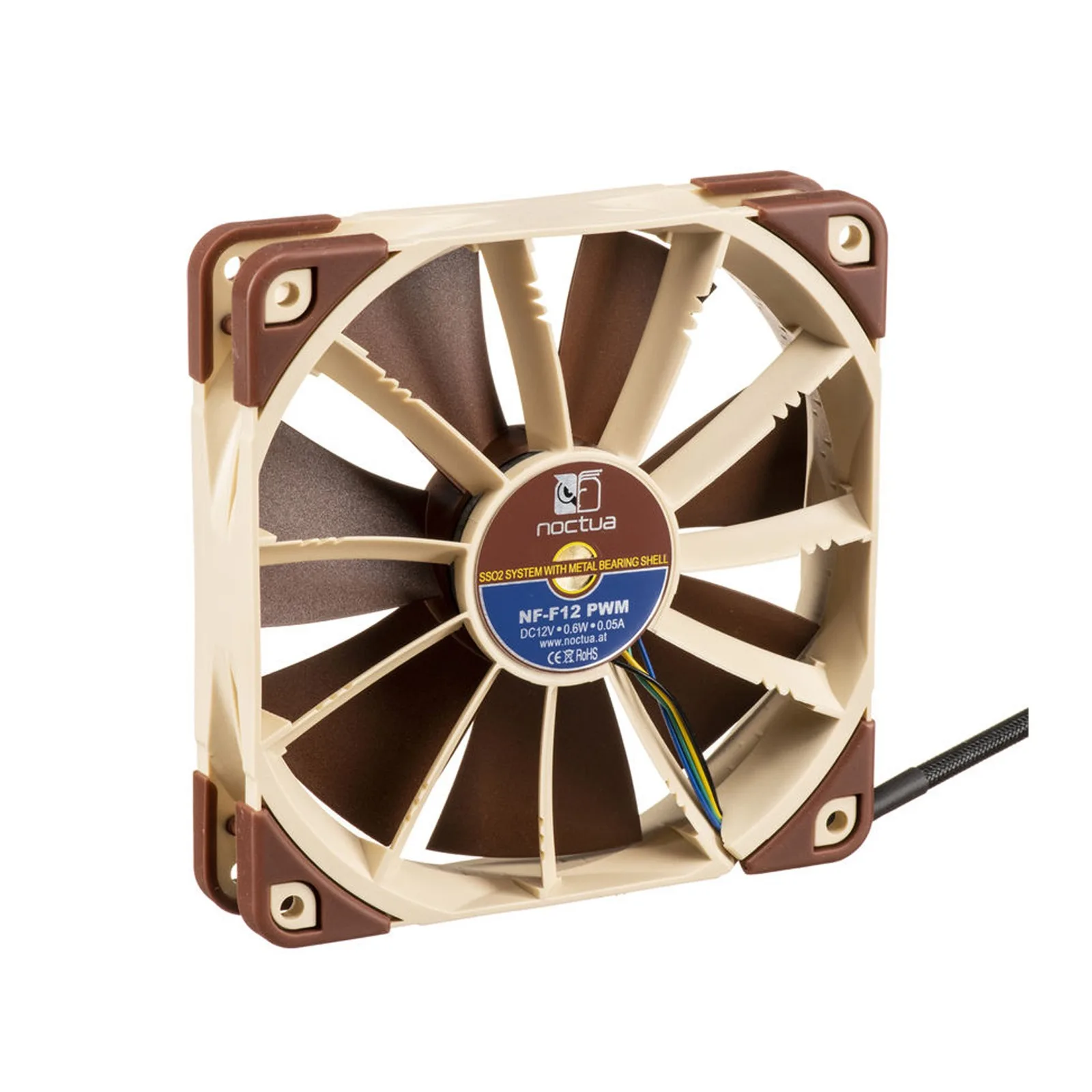

Noctua NF-F12 PWM 120mm Cooling Fan (Brown)

Premium Static Pressure Cooling Fan Design

The Noctua NF-F12 PWM is a high-performance 120mm cooling fan designed for systems that require strong airflow through restricted spaces such as CPU heatsinks and radiators. Its Focused Flow frame design helps concentrate air pressure, making it especially effective for performance cooling setups. The signature brown color reflects Noctua’s traditional design language and engineering-first approach.

High Efficiency and Quiet Operation

This fan is engineered to balance strong cooling performance with low noise output. It operates within a speed range of 300 to 1500 RPM, delivering up to 54.97 CFM airflow while maintaining a maximum noise level of only 22.4 dB(A). The integrated PWM control allows automatic speed adjustment based on system temperature, ensuring efficient cooling without unnecessary noise during low-load conditions.

Durable Build and Long-Term Reliability

Built with Noctua’s premium SSO2 bearing system, the NF-F12 is designed for long-term durability and stable performance over extended usage. It includes anti-vibration pads, a low-noise adapter, and extended cabling for flexible installation in PC builds. With a lifespan rated for over 150,000 hours and a 6-year warranty, it is considered one of the most reliable 120mm fans in the cooling market.

Key Specifications

• Product Name: Noctua NF-F12 PWM 120mm Cooling Fan

• Size: 120mm × 120mm × 25mm

• Color: Brown

• Fan Type: High Static Pressure / Focused Flow Design

• Speed Range: 300 – 1500 RPM

• Airflow: ~54.97 CFM

• Noise Level: Up to 22.4 dB(A)

• Bearing Type: SSO2 (Self-Stabilizing Oil-Pressure Bearing)

• Connector: 4-Pin PWM

• Voltage: 12V

• Power Consumption: ~0.6W

• Lifespan: >150,000 hours

• Warranty: 6 years

• Included Accessories: Low-noise adapter, Y-split cable, extension cable, anti-vibration mounts
