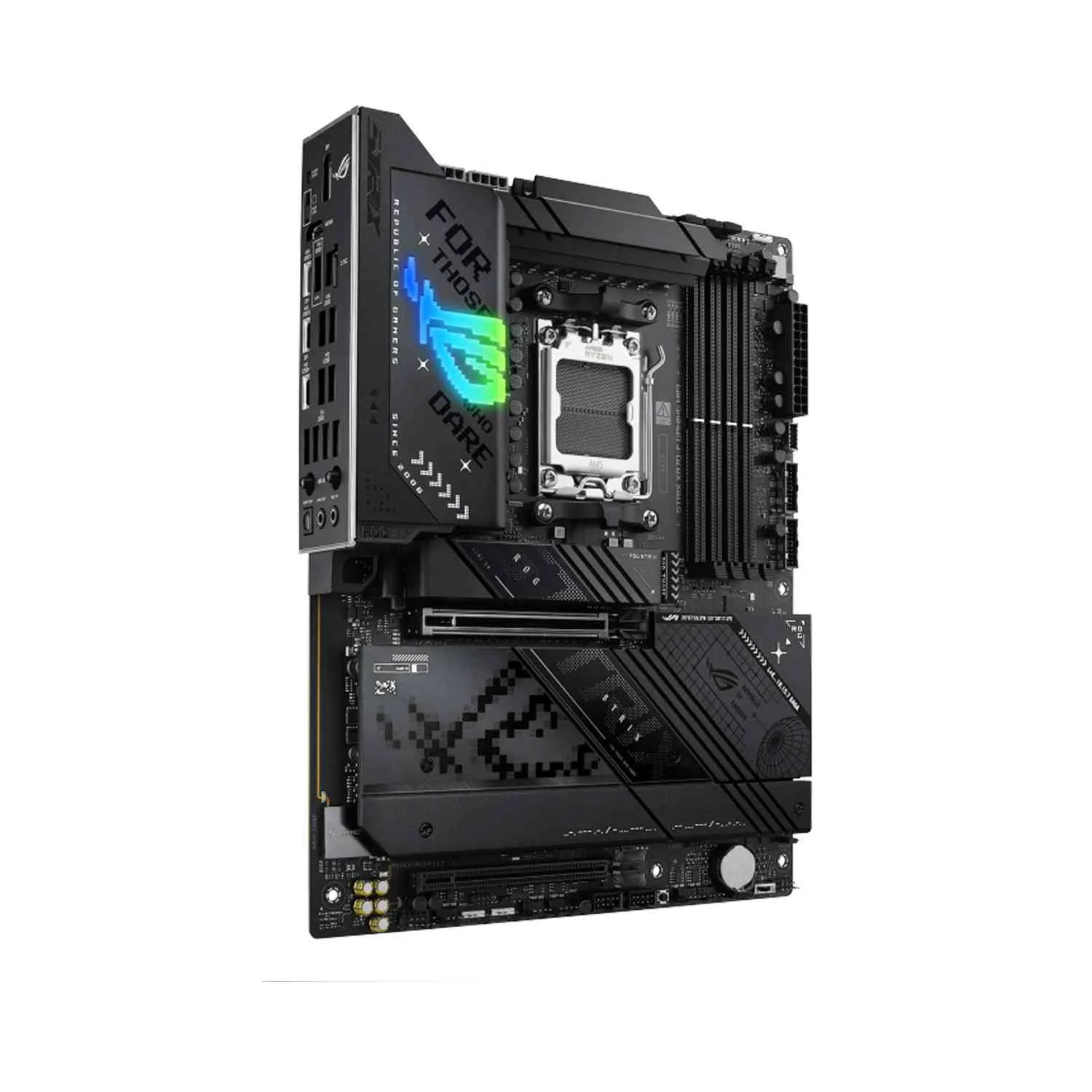

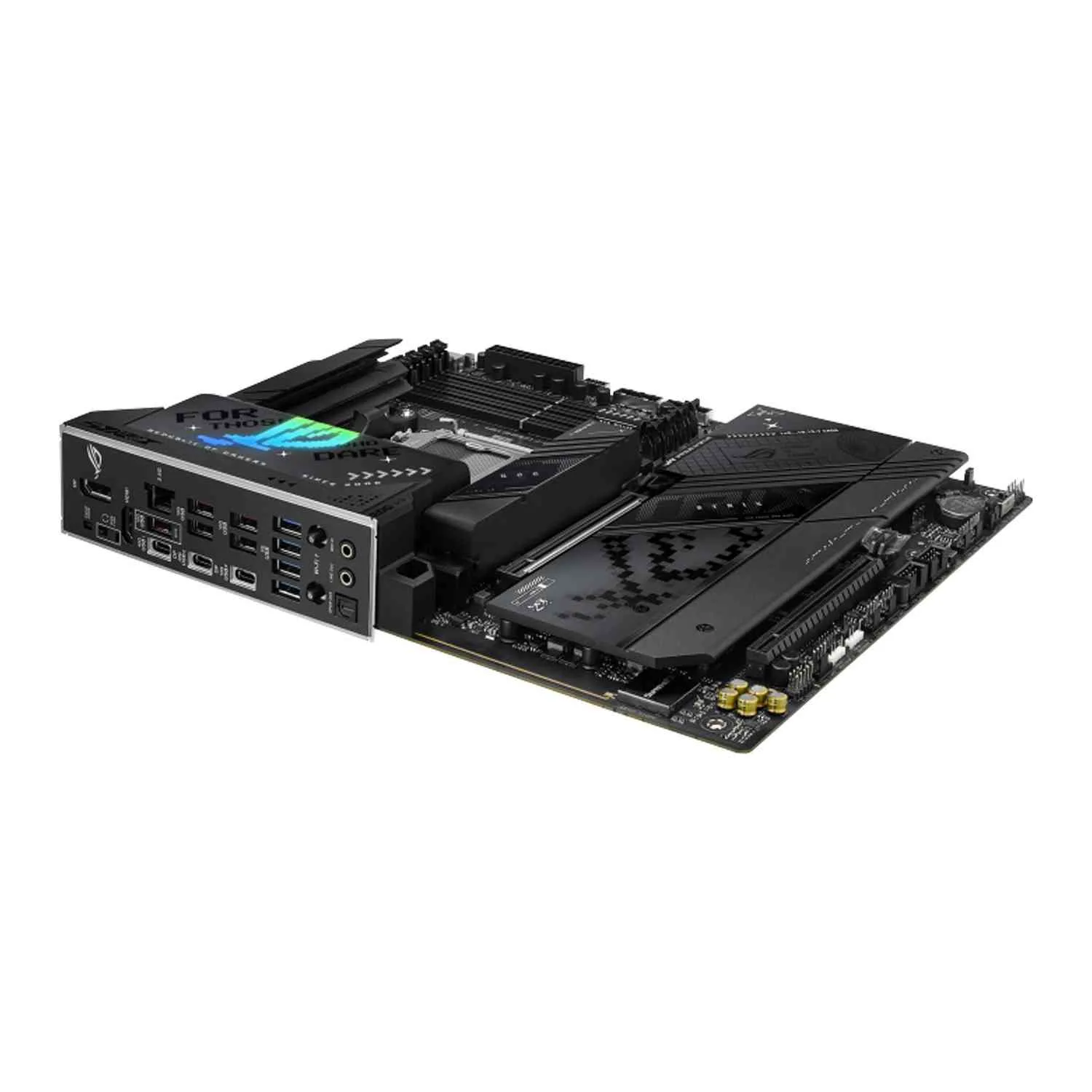

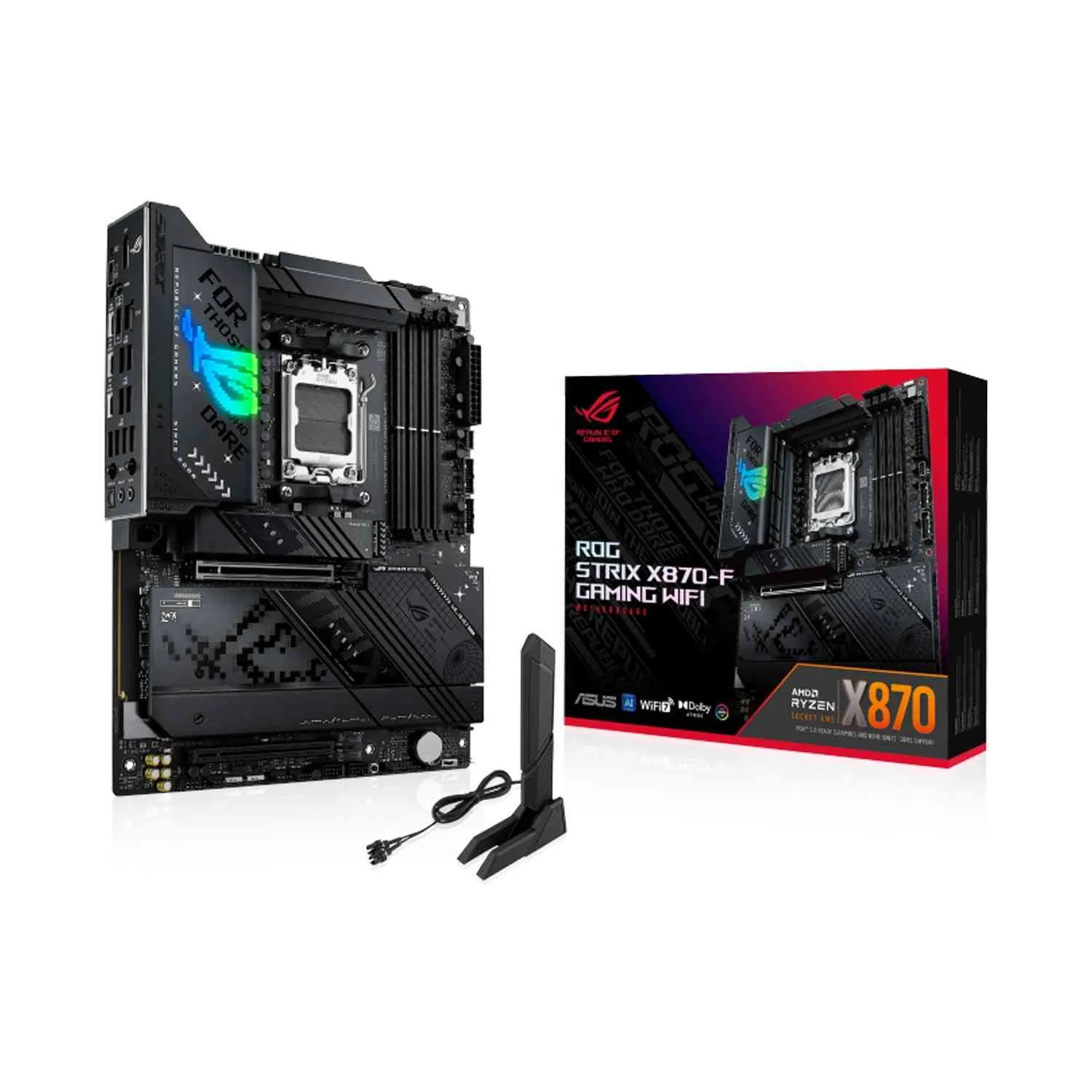

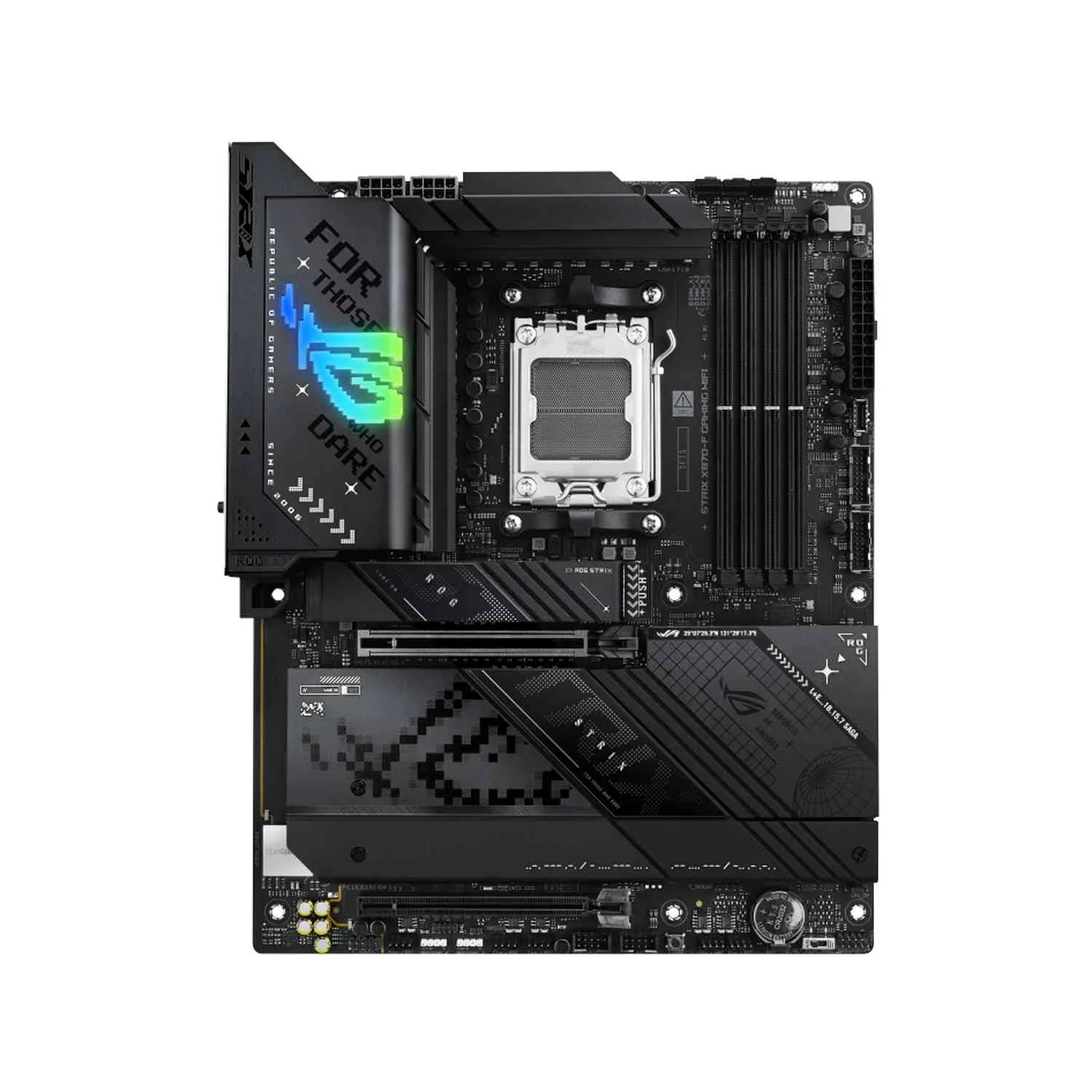

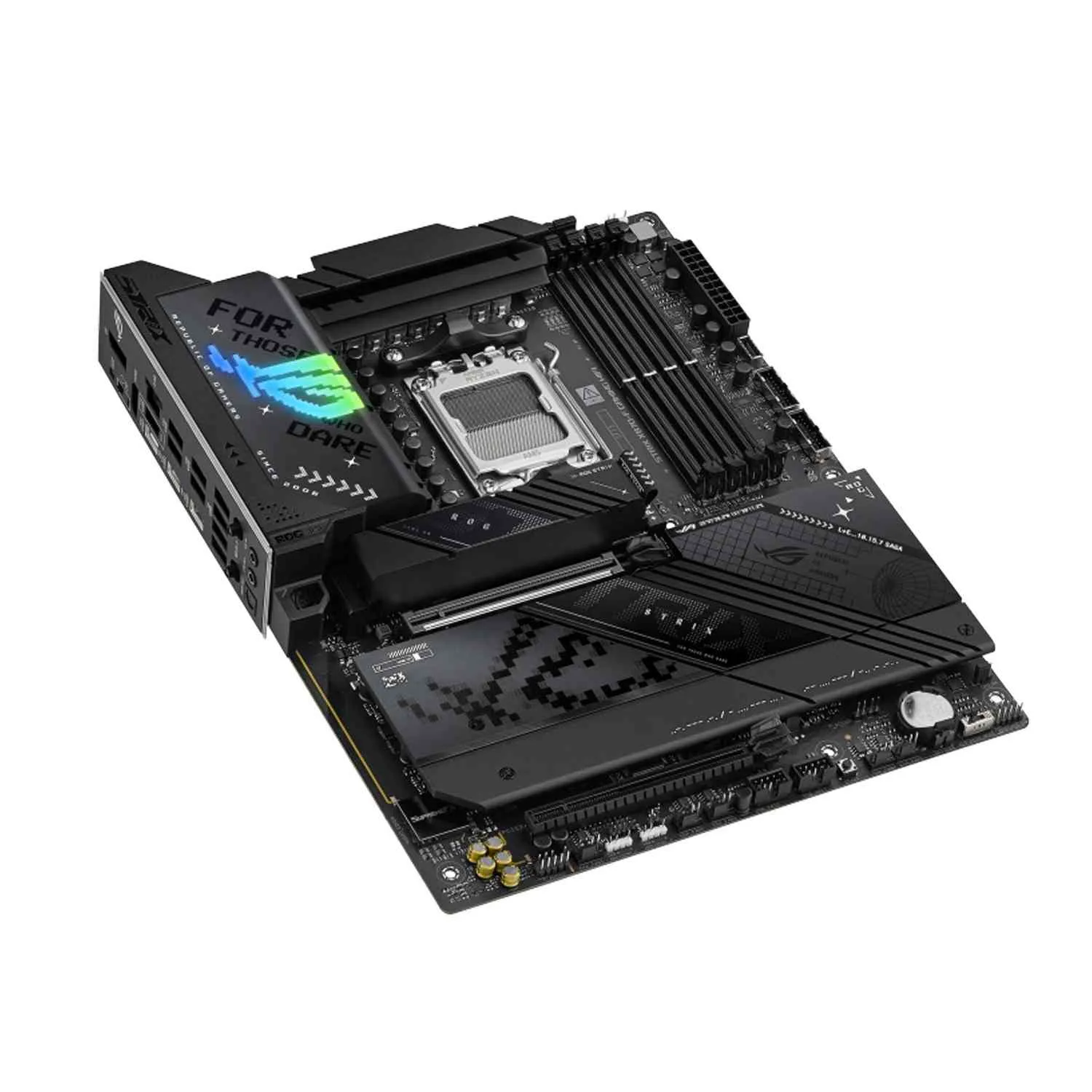

Asus Rog Strix X870-F AM5 AMD Ryzen Wi-Fi 7 Gaming Motherboard
The Asus Rog Strix X870-F AM5 Gaming Motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series processors. It features Wi-Fi 7 technology for high-speed connectivity, four DIMM slots for up to 192GB DDR5 RAM, and extensive storage options with four M.2 slots
KWD 138.510
KWD 148.205
SKU :
90MB1IV0-M0EAY0
4 interest-free payments of KWD 37.051Learn more
Estimated delivery:1 work day
Free return within: 14 days of purchaseSecure shopping your data is always safeOverview
Model DetailsThe Asus Rog Strix X870-F is a high-performance gaming motherboard designed for AMD Ryzen processors. It features an ATX form factor with dimensions of 12 inches by 9.6 inches, ensuring compatibility with a wide range of cases. | |
 | |
 | |
Chipset and Socket CompatibilityEquipped with the AMD X870 chipset, this motherboard supports AMD Socket AM5, making it compatible with Ryzen 9000, 8000, and 7000 series desktop processors. For specific CPU support, refer to the official Asus website. Access Point | |
Wireless ConnectivityThe motherboard includes advanced Wi-Fi 7 technology, supporting 2x2 configuration and multiple frequency bands (2.4/5/6GHz). It offers a maximum transfer rate of up to 6.5Gbps, along with Bluetooth v5.4 for seamless device connectivity. Router | |
 | |
 | |
Memory SupportWith four DIMM slots, the Asus Rog Strix X870-F supports up to 192GB of DDR5 memory, with speeds exceeding 8000 MT/s when overclocked. It is compatible with both ECC and Non-ECC unbuffered memory, enhancing performance for demanding applications. WiFi Router | |
Storage OptionsThis motherboard provides extensive storage capabilities with four M.2 slots and two SATA 6Gb/s ports. It supports various M.2 configurations, including PCIe 5.0 and PCIe 4.0 modes, ensuring fast data transfer and ample storage expansion. Mesh Router | |
 | |
 | |
Ethernet ConnectivityThe Asus Rog Strix X870-F features a single Intel 2.5Gb Ethernet port, enhanced with ASUS LANGuard technology. This ensures reliable and high-speed wired network connections, ideal for online gaming and data-intensive tasks. Access Point |
Key Specifications
- Model NoROG STRIX X870-F GAMING WIFI
- Part No90MB1IV0-M0EAY0ChipsetAMD X870Form FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )Socket
- CompatibilityAMD Socket AM5 for AMD Ryzen™ 9000 &8000 & 7000 Series Desktop
- Processors** Refer to www.asus.com for CPU supportlist.Wireless & BluetoothWi-Fi 7*2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.Bluetooth® v5.4****Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.EthernetEthernet1 x Intel® 2.5Gb EthernetASUS LANGuardMemroy4 x DIMM slots, max. 192GB, DDR5Supports up to 8000+MT/s(OC) with Ryzen™9000 & 8000 & 7000 Series
- Processors, ECC and Non-ECC, Un-buffered
- Memory*"Dual channel memory architectureSupports AMD Extended Profiles forOverclocking (EXPO™)ASUS Enhanced
- Memory Profile (AEMP)
- CompatibilitySupports 4 x M.2 slots and 2 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 7000 Series Desktop
- Processors*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**AMD Ryzen™ 8000 Series Desktop
- Processors**M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****AMD X870 ChipsetM.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)2 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. ** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.*** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.**** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop

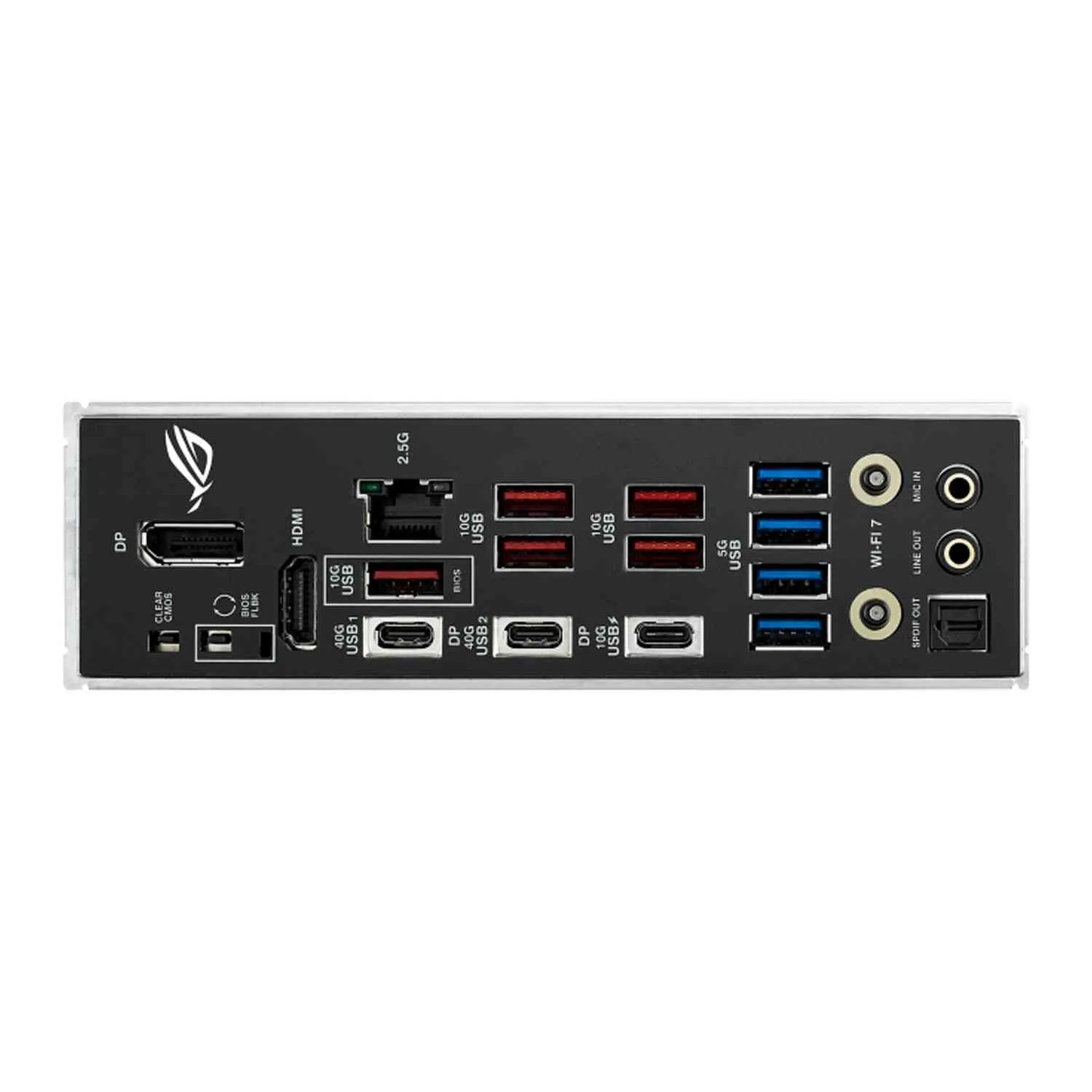

- Processors.Back Panel I/O Ports2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode)6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**4 x USB 5Gbps ports (4 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet2 x Audio jacks 1 x Optical S/PDIF out port1 x BIOS FlashBack™ button 1 x Clear CMOS buttonUSB Ports Front (Support )Rear USB (Total 12 ports)2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)*6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**4 x USB 5Gbps ports (4 x Type-A)Front USB (Total 9 ports)1 x USB 20Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0AExpansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop
- Processors*1 x PCIe 5.0 x16 slot (supports x16 mode)AMD Ryzen™ 8000 Series Desktop
- Processors*1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**AMD X870 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*-
- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel"Audio Features - SupremeFX Shielding Technology- Savitech SV3H712 AMP - Rear optical S/PDIF out port- Premium audio capacitors- Audio cover* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.Internal I/O ConnectorsFan and
