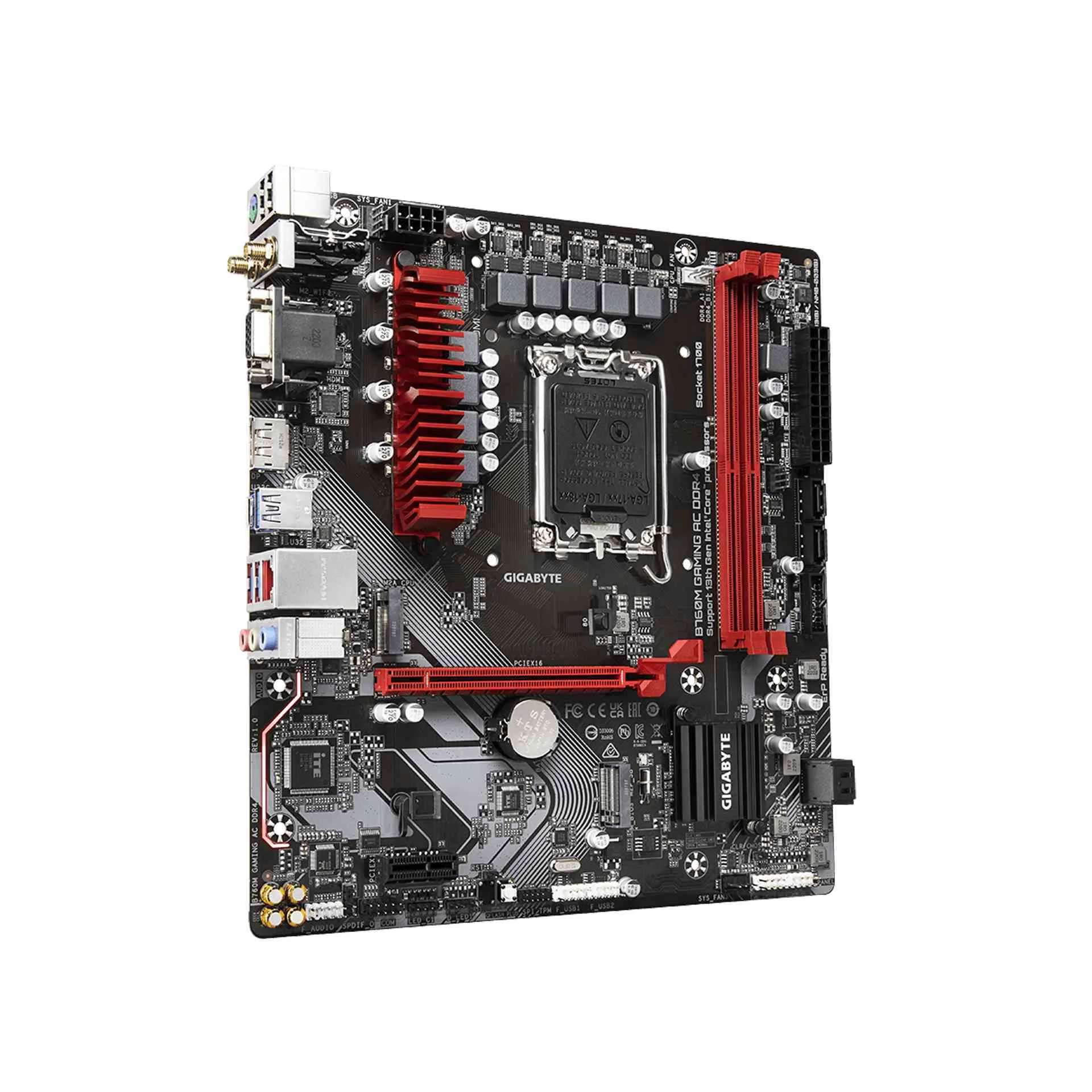

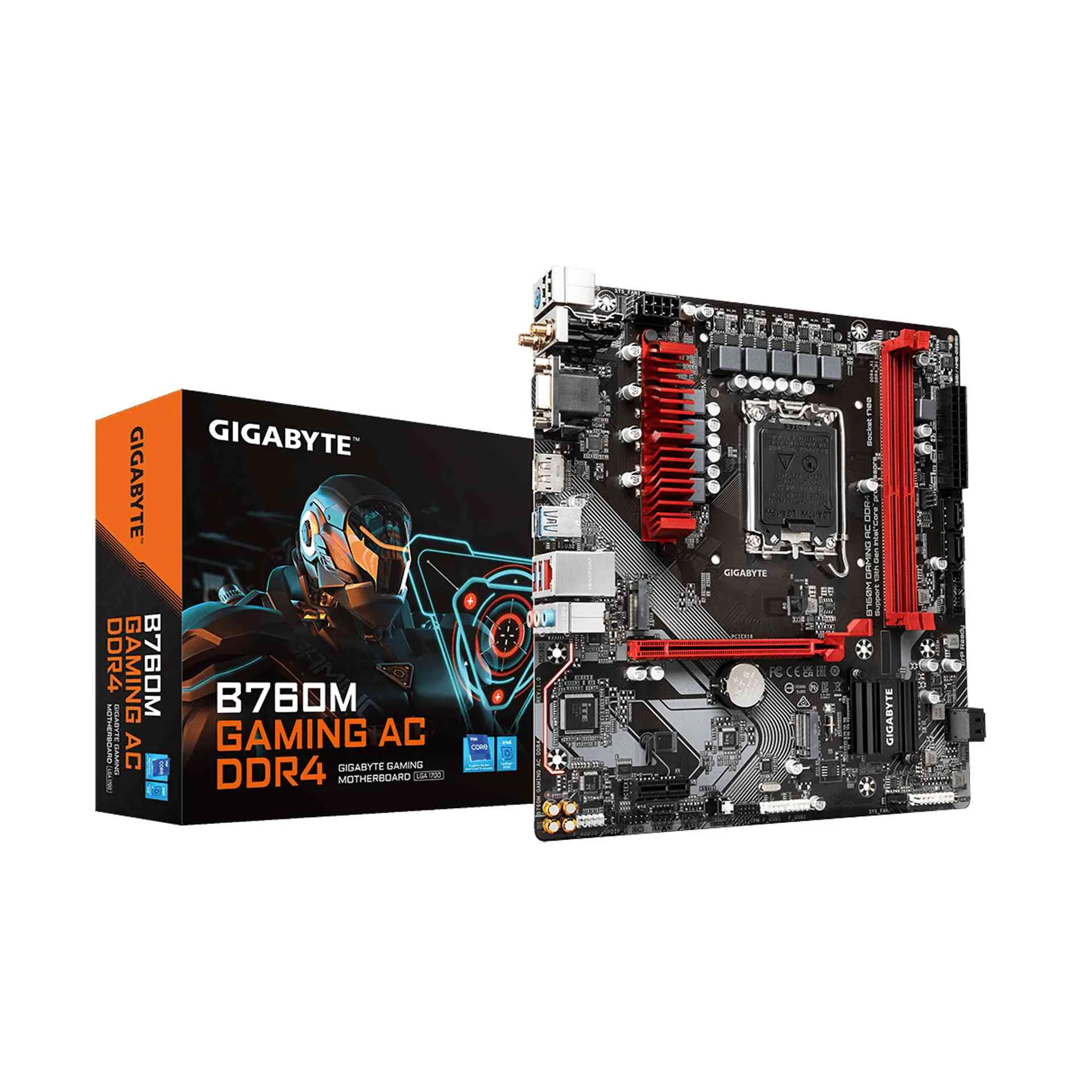

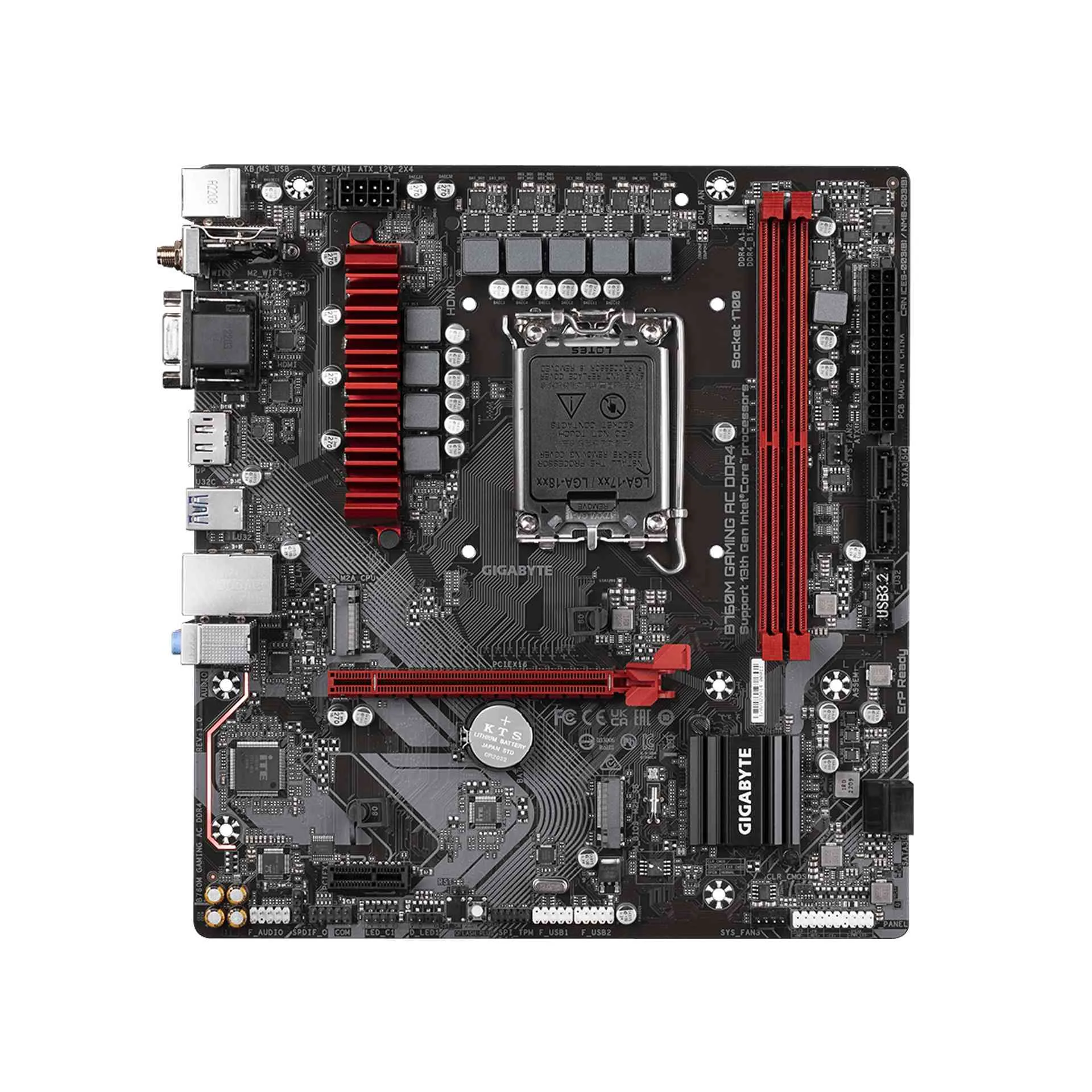

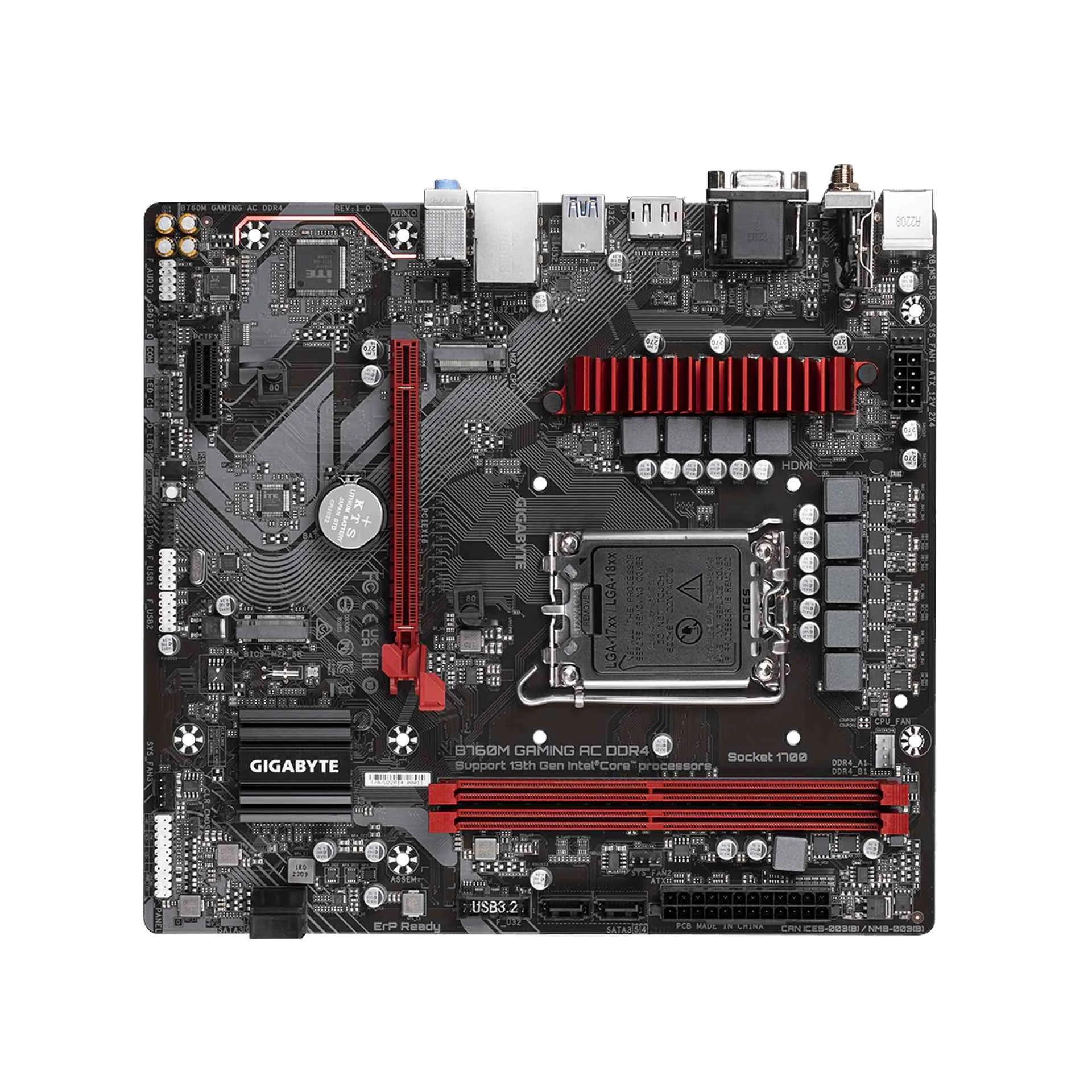

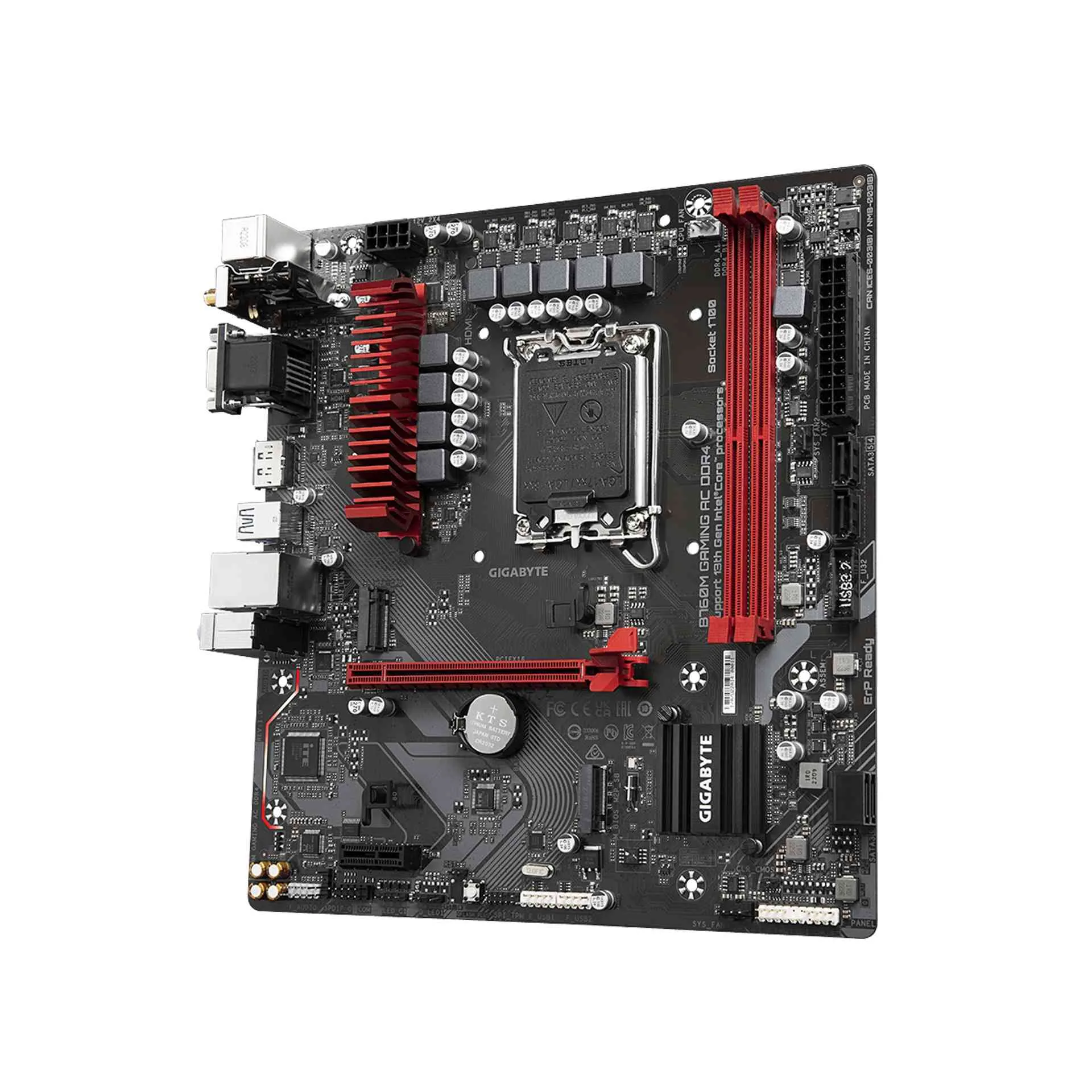

GigaByte Intel B760M Gaming AC DDR4 MotherBoard

Key Specifications

• Model NoGigaByte Intel B760M Gaming AC DDR4 MotherBoard
• Part NoB760M GAMING AC DDR4ChipsetIntel® B760 Express ChipsetForm FactorMicro ATX Form Factor; 24.4cm x 22.5cmSocket
• CompatibilityLGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron®
• ProcessorsL3 cache varies with CPULANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication moduleAzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (PCB rev. 1.0)WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-BandBLUETOOTH 4.2Support for 11ac wireless standard and up to 433 Gbps data rateIntel® Wireless-AC 9461 (PCB rev. 1.1)WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.1Support for 11ac wireless standard and up to 433 Mbps data rate(Actual data rate may vary depending on environment and equipment.)
• GraphicsIntegrated
• Graphics
• Processor-Intel® HD
• Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3(
• Graphics specifications may vary depending on CPU support.)Support for up to 3 displays at the same timeMemroySupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 30002933/ 2666/ 2400/ 2133 MT/s memory modules2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme
• Memory Profile (XMP) memory modules

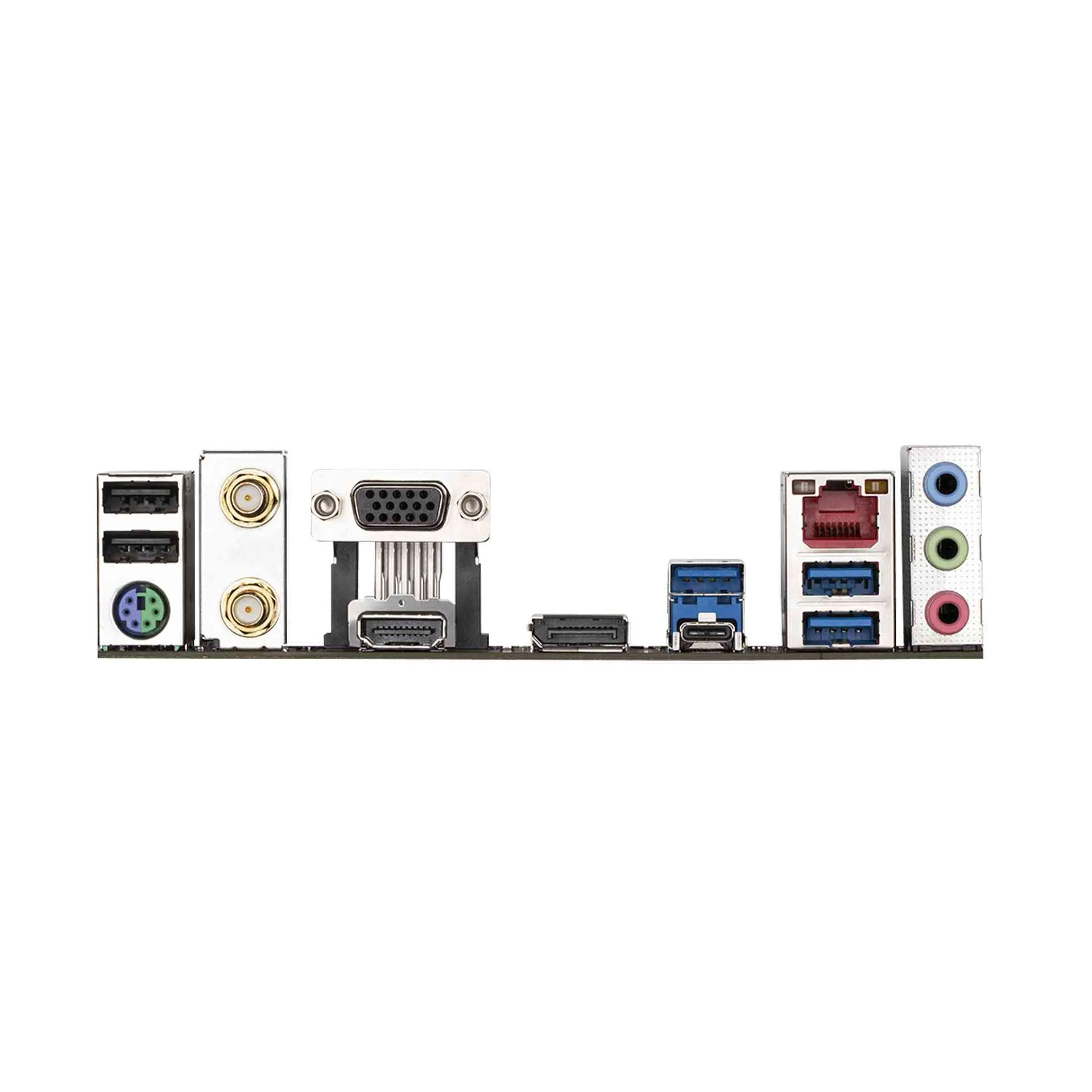

• CompatibilityCPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesBack Panel I/O Ports2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (1T1R)1 x D-Sub port1 x HDMI port1 x DisplayPort3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 1 support1 x RJ-45 port3 x audio jacksUSB PortsChipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headersExpansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1AudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutInternal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip headers1 x RGB LED strip headers2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumperSpecial FeaturesIntel® Socket LGA 1700：Support 13th and 12th Gen Series
• ProcessorsUnparalleled Performance：Hybrid 6+2+1 Phases Digital VRM SolutionDual Channel DDR4：2*DIMMs XMP
• Memory Module SupportNext Generation
• Storage：2*PCIe 4.0 x4 M.2 ConnectorsEZ-Latch：PCIe 4.0x16 Slot with Quick Release DesignFast Networks：2.5GbE LAN & Wi-Fi 802.11acExtended
