MSI MPG X870E Edge Ti Wifi PCIe 5.0 DDR5 AM5 for AMD Ryzen Gaming MotherBoard

3.67
★★★★★★★★★★
Ratings3
The MSI MPG X870E Edge Ti Wifi PCIe 5.0 DDR5 AM5 motherboard is engineered for AMD Ryzen processors, featuring the AMD X870E chipset. It supports Wi-Fi 7 with speeds up to 5.8Gbps, HDMI 2.1 for 8K at 60Hz, and four DDR5 slots for up to 256GB memory
KWD 136.800
KWD 146.375
SKU :
911-7E59-001
4 interest-free payments of KWD 36.594Learn more
Split into 4 payments of KWD 36.594 interest-free.Learn more
Taly
Estimated delivery:1 work day
Free return within: 14 days of purchase
Secure shopping your data is always safe
Overview

Model Overview

The MSI MPG X870E Edge Ti Wifi is a high-performance motherboard designed for AMD Ryzen processors. It features the AMD X870E chipset and an ATX form factor, measuring 243.84mm x 304.8mm. This motherboard supports the latest PCIe 5.0 technology, ensuring rapid data transfer rates for demanding applications.

Model Overview
Socket Compatibility

Socket Compatibility

This motherboard is compatible with AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors using the AM5 socket. It allows for advanced performance tuning and supports a range of memory configurations, making it suitable for both gaming and professional workloads. Access Point

Memory Support

The MSI MPG X870E Edge Ti Wifi supports up to 256GB of DDR5 memory across four UDIMM slots. It accommodates memory speeds from 5600 MT/s to 8400 MT/s (OC), enabling high bandwidth for intensive applications. The motherboard also supports dual-channel mode and memory overclocking capabilities. Router

Memory Support
Storage Options

Storage Options

Equipped with four M.2 slots and four SATA 6GB/s ports, this motherboard offers extensive storage options. The M.2 slots support PCIe 5.0 and 4.0, allowing for high-speed SSD installations. This ensures ample space and fast access for your operating system and applications. WiFi Router

Networking Features

The MSI MPG X870E Edge Ti Wifi includes a Realtek® 8126 5G LAN port and a pre-installed Wi-Fi 7 module. It supports MU-MIMO technology and multiple frequency bands, providing robust wireless connectivity. Bluetooth 5.4 support enhances device compatibility for peripherals and accessories. Mesh Router

Networking Features

Key Specifications

  • Model NoMSI MPG X870E Edge Ti Wifi PCIe 5.0 DDR5 AM5 for AMD Ryzen Gaming MotherBoard
  • Part No911-7E59-001ChipsetAMD X870E ChipsetForm FactorATX243.84mmx304.8mmSocket
  • CompatibilitySupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop
  • ProcessorsSocket AM5LAN1x Realtek® 8126 5G LANWireless Communication moduleWi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
  • Graphics1x HDMI™Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*2x Type-C DisplayPortUSB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz**Available only on processors featuring integrated graphics.
  • Graphics specifications may vary depending on the CPU installed.Memroy4x DDR5 UDIMM, Maximum
  • Memory Capacity 256GB
  • Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series
  • Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8400+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports
  • Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only*

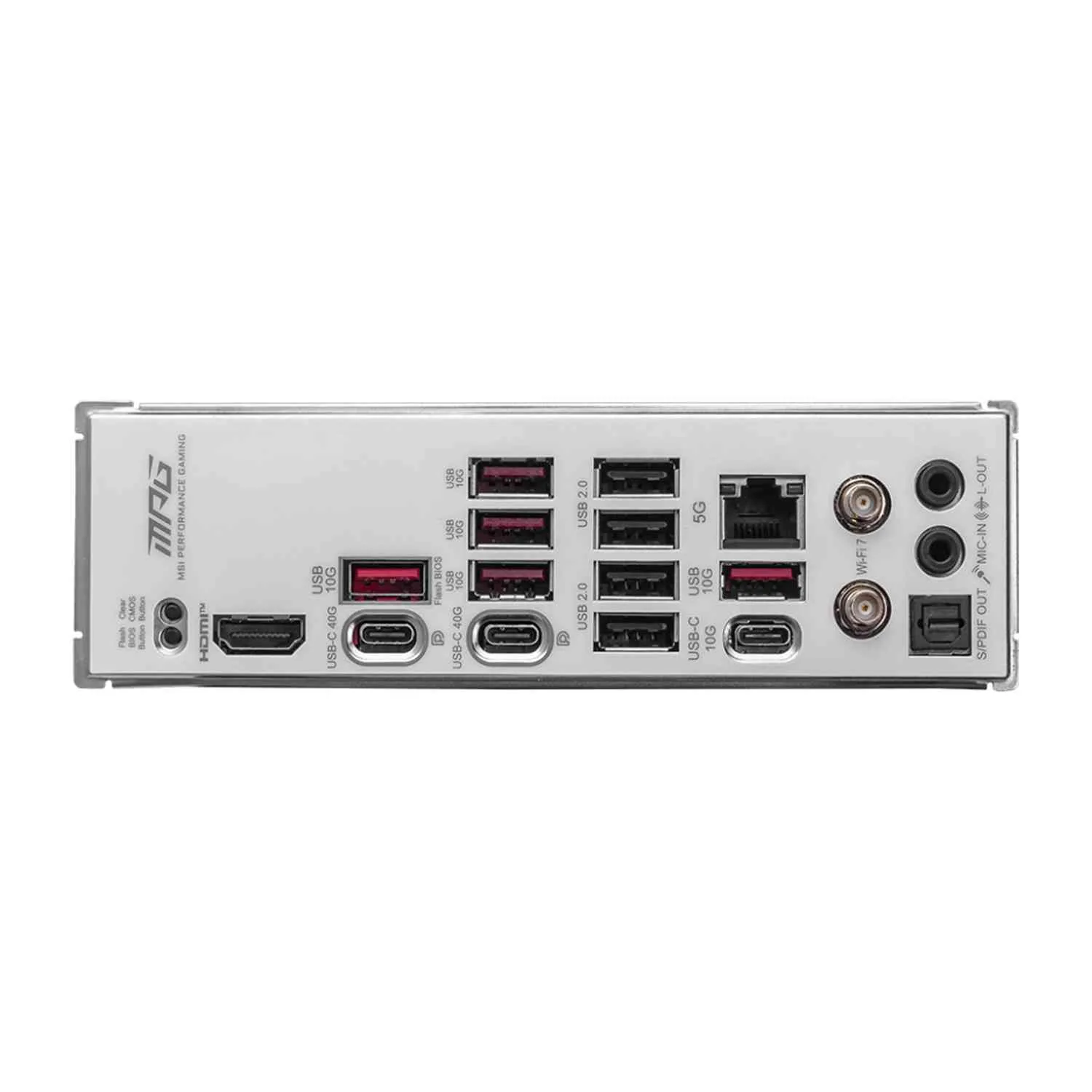

  • Compatibility4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices4x SATA 6GM.2_1 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M.2_2 slot• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)* The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.Back Panel I/O PortsClear CMOS ButtonUSB 10Gbps Type-AUSB 2.05G LANWi-Fi / BluetoothAudio ConnectorsFlash BIOS ButtonHDMI™USB 40Gbps Type-CUSB 10Gbps Type-AUSB 10Gbps Type-COptical S/PDIF OutUSB Ports4x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Front)5x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)2x USB 40Gbps Type C (Rear)Expansion Slots3x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)AudioRealtek® ALC4080 Codec7.1-Channel USB High-Performance AudioSupports up to 32-Bit/384 kHz playback on front panelSupports S/PDIF outputInternal I/O Connectors1x
  • Power Connector(ATX_PWR)2x
  • Power Connector(CPU_PWR)1x
  • Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 20Gbps Type C portsRAID•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.LED Feature4x EZ Debug LED1x EZ Digi-Debug LED
