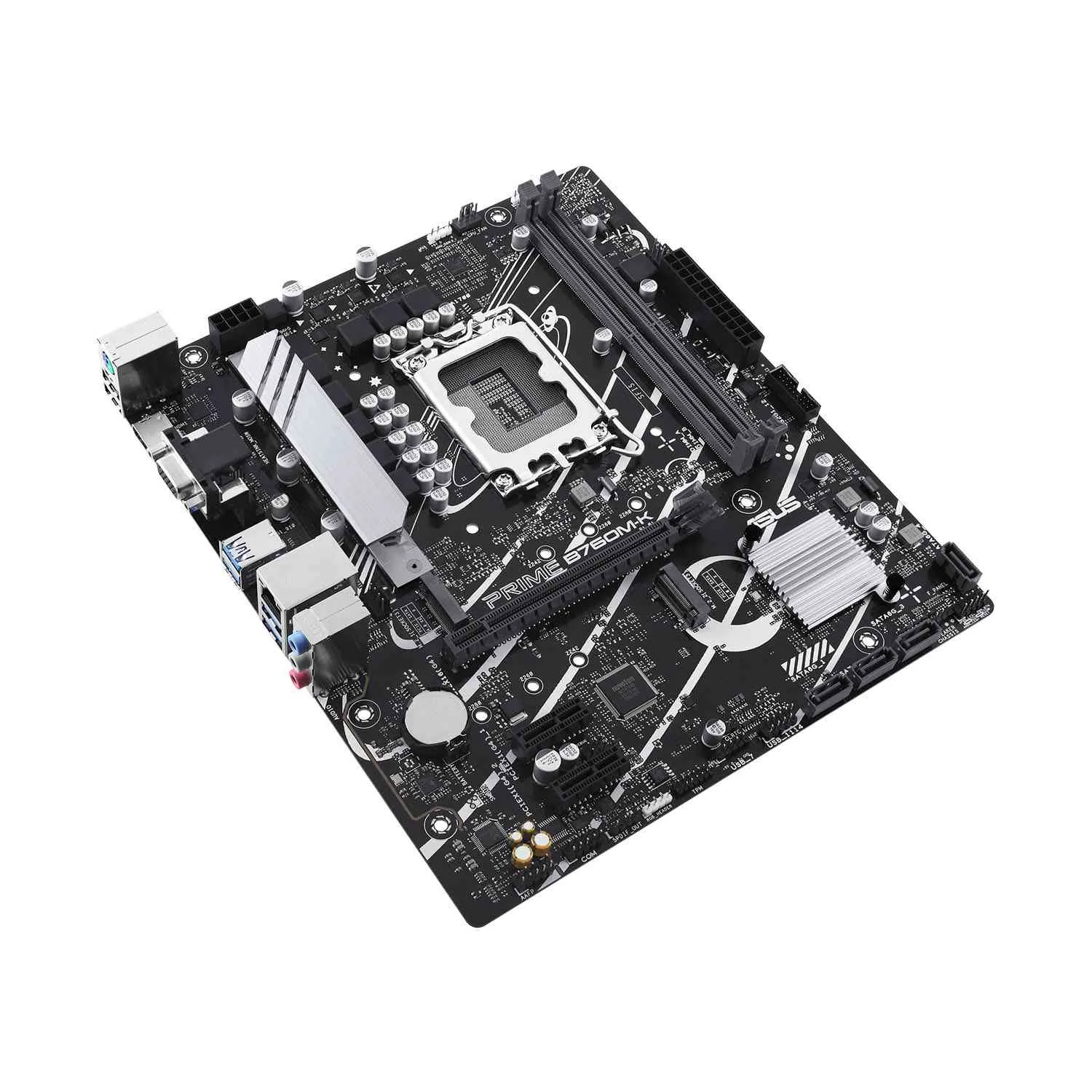

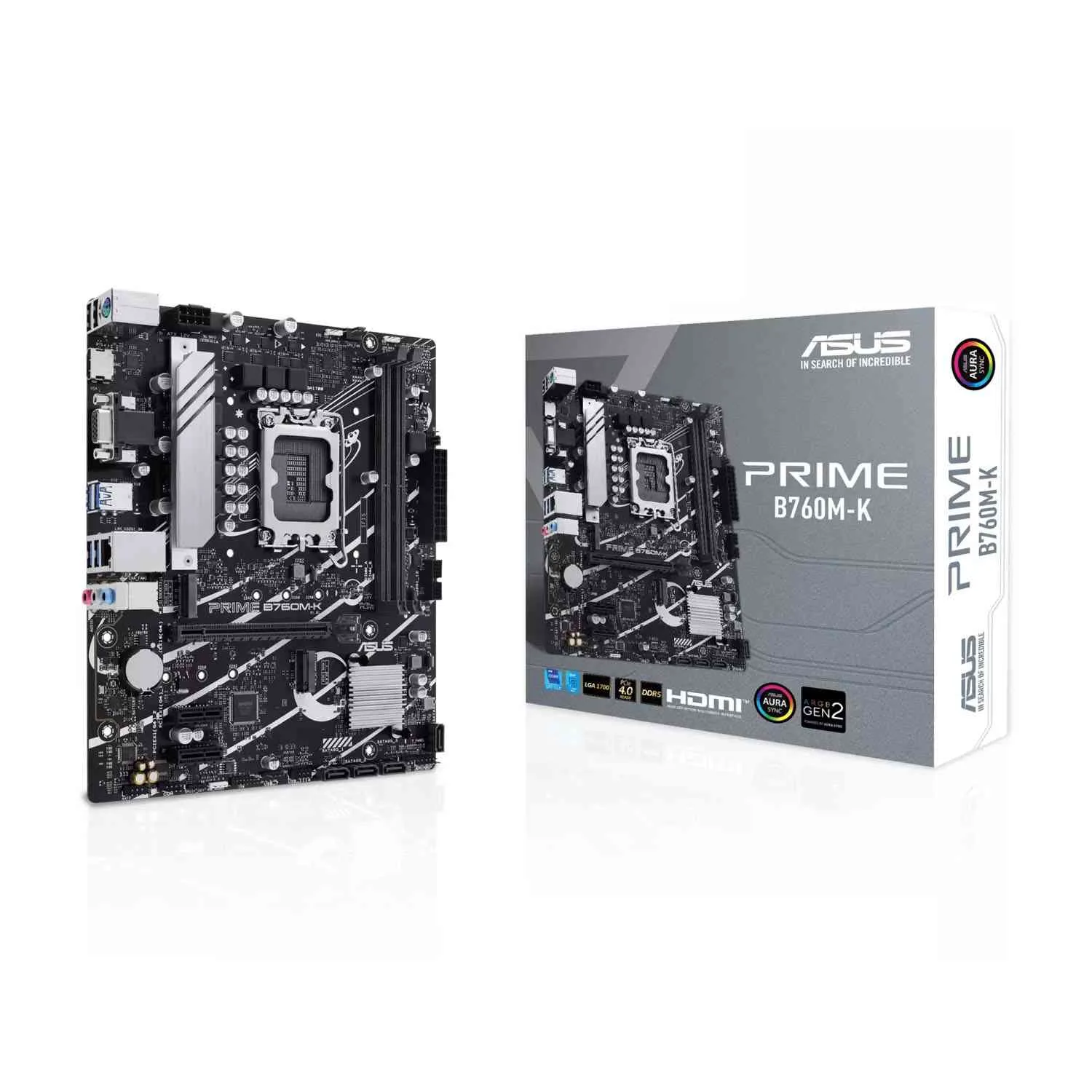

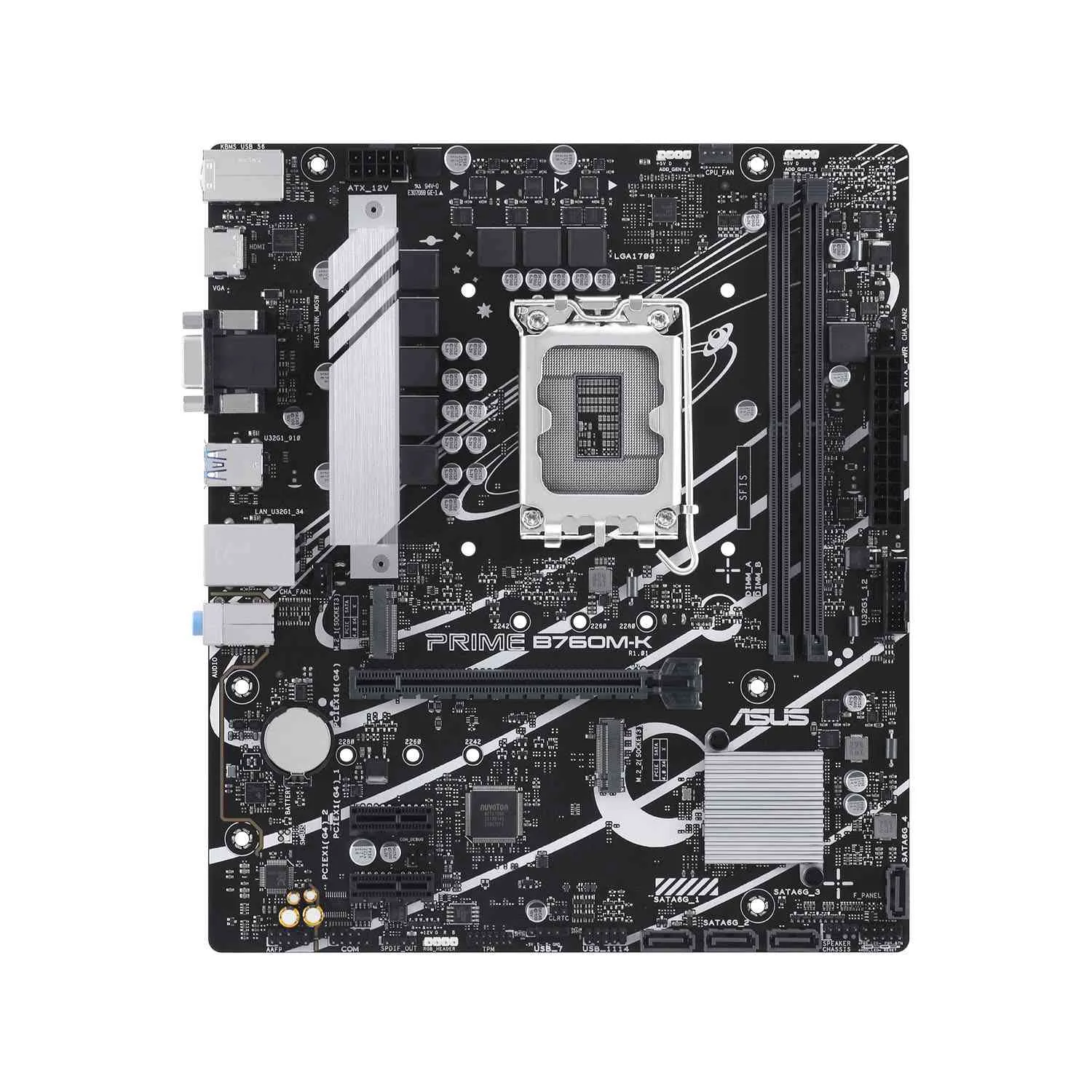

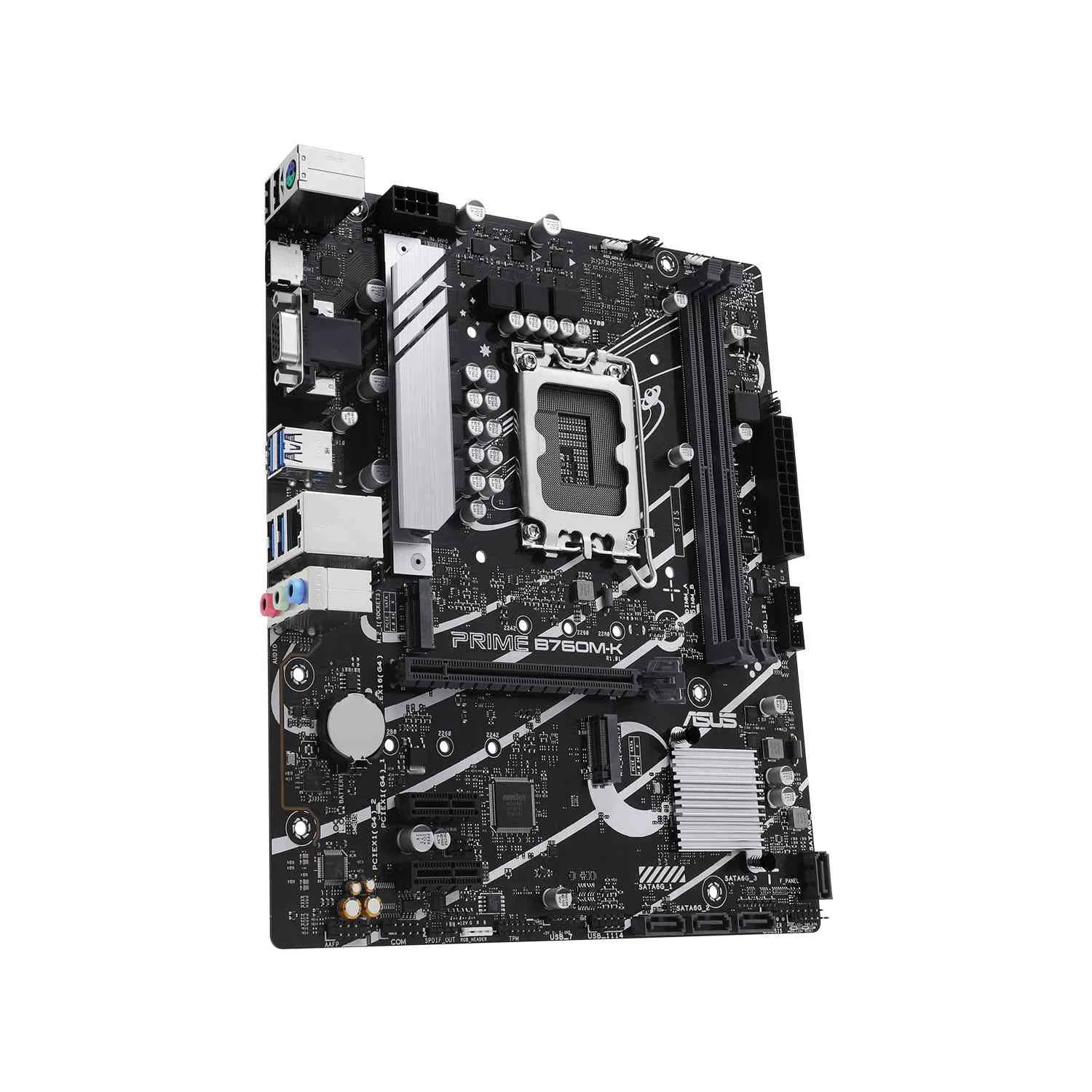

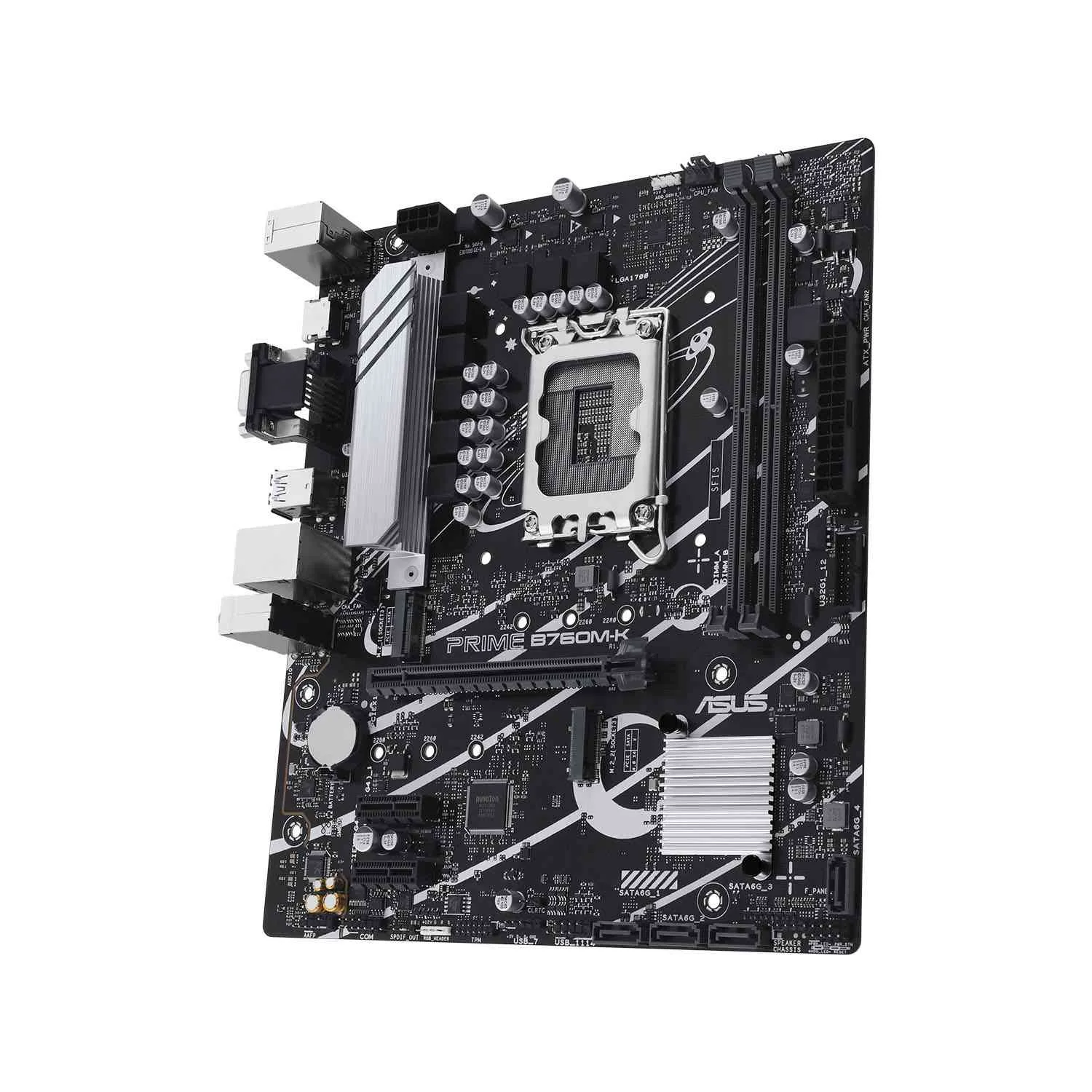

Asus Intel Prime B760M-K DDR5 MotherBoard
The Asus Intel Prime B760M-K DDR5 Motherboard features the Intel® B760 Chipset and mATX form factor. It supports Intel® LGA1700 processors, up to 96GB DDR5 RAM at 8000 MHz, and offers dual M.2 slots for storage for high-performance computing
KWD 41.040
KWD 43.915
SKU :
90MB1FI0-M0EAY0
4 interest-free payments of KWD 10.978Learn more
Estimated delivery:1 work day
Free return within: 14 days of purchaseSecure shopping your data is always safeOverview
Model OverviewThe Asus Intel Prime B760M-K DDR5 Motherboard is designed for high-performance computing. It features the Intel® B760 chipset and is compatible with Intel® Socket LGA1700 processors, including 13th and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors. | |
 | |
 | |
Form Factor and DimensionsThis motherboard adheres to the mATX form factor, measuring 9.6 inches by 8.3 inches (24.4cm x 21.1cm). Its compact design allows for efficient space utilization in a variety of PC builds. RAM | |
Memory SupportEquipped with 2 DIMM slots, the motherboard supports up to 96GB of DDR5 memory. It accommodates various speeds, including overclocking options up to 8000 MHz, ensuring flexibility for performance tuning. Memory | |
 | |
 | |
Storage OptionsThe Asus Intel Prime B760M-K offers extensive storage capabilities with 2 M.2 slots and 4 SATA 6Gb/s ports. This configuration supports Intel® Rapid Storage Technology, enabling versatile RAID configurations for enhanced data management. RAM | |
Graphics and Audio FeaturesThis motherboard includes a VGA port and an HDMI™ port, supporting 4K@60Hz output. It also features Realtek 7.1 Surround Sound High Definition Audio CODEC, providing immersive audio experiences with premium audio components. RAM | |
 | |
 | |
Connectivity OptionsThe rear I/O panel features 6 USB ports, including 4 USB 3.2 Gen 1 ports and 2 USB 2.0 ports. Additionally, front USB headers allow for further expansion, accommodating up to 5 additional USB ports for enhanced connectivity. RAM |
Key Specifications
- Model NoAsus Intel Prime B760M-K DDR5 MotherBoard
- Part No90MB1FI0-M0EAY0ChipsetIntel® B760 ChipsetForm FactormATX Form Factor9.6 inch x 8.3 inch (24.4cm x 21.1cm)Socket
- CompatibilityIntel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
- Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.Ethernet1 x Realtek 2.5Gb EthernetMemroy Type2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC),6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC),5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered
- Memory*Dual Channel
- Memory ArchitectureSupports Intel® Extreme
- Memory Profile (XMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- CompatibilityTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen
- ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid
- Storage Technology supports SATA RAID 0/1/5/10.
- Graphics1 x VGA port1 x HDMITM port***
- Graphics specifications may vary between CPU types.** Supports 4K@60Hz as specified in HDMITM 2.1.USB PortsRear USB (Total 6 ports)4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A）Front USB (Total 5 ports)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 portsExpansion SlotsIntel® 13th & 12th Gen

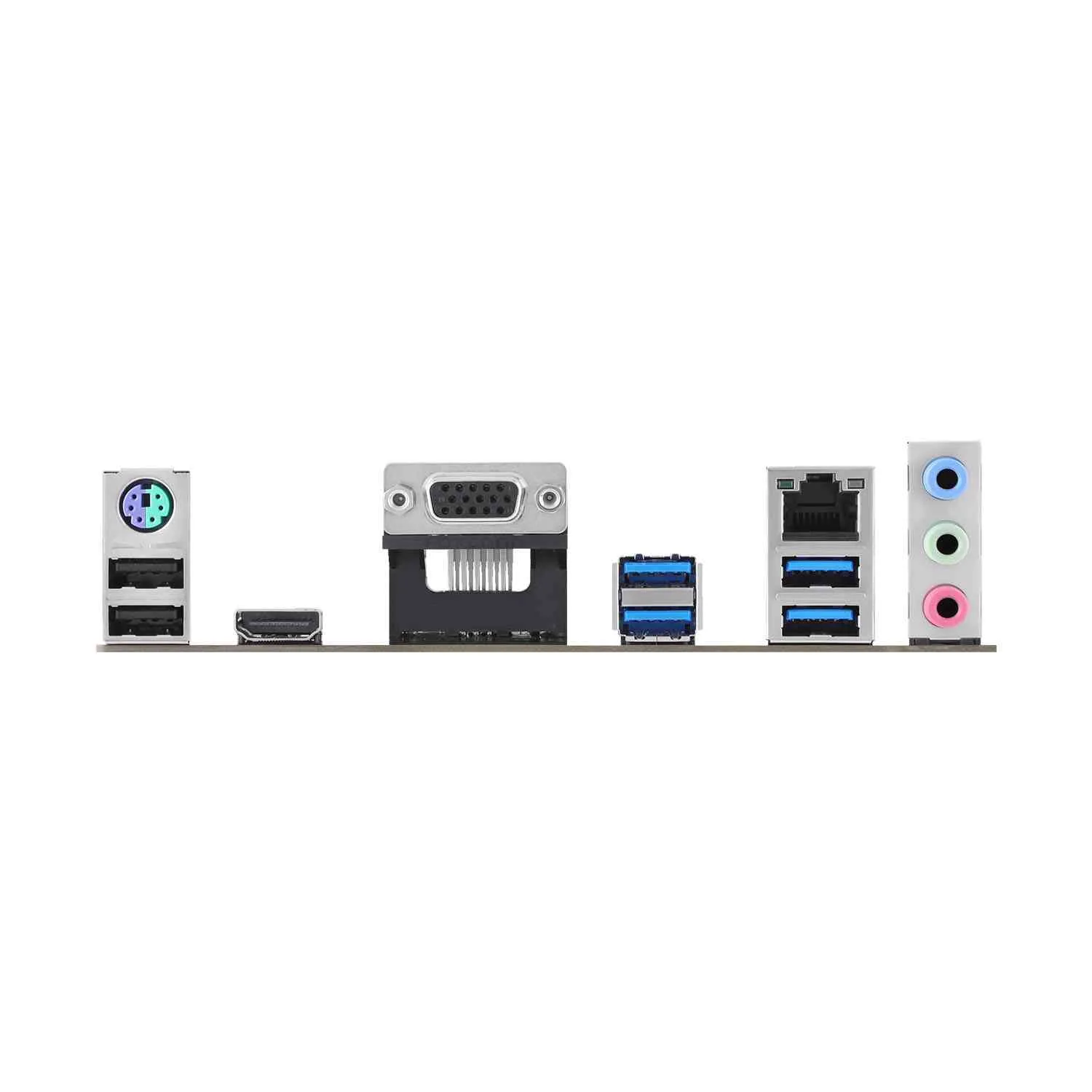

- Processors1 x PCIe 4.0 x16 slotIntel® B760 Chipset2 x PCIe 4.0 x1 slotsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x VGA port1 x HDMITM port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsFan and
- Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headers
