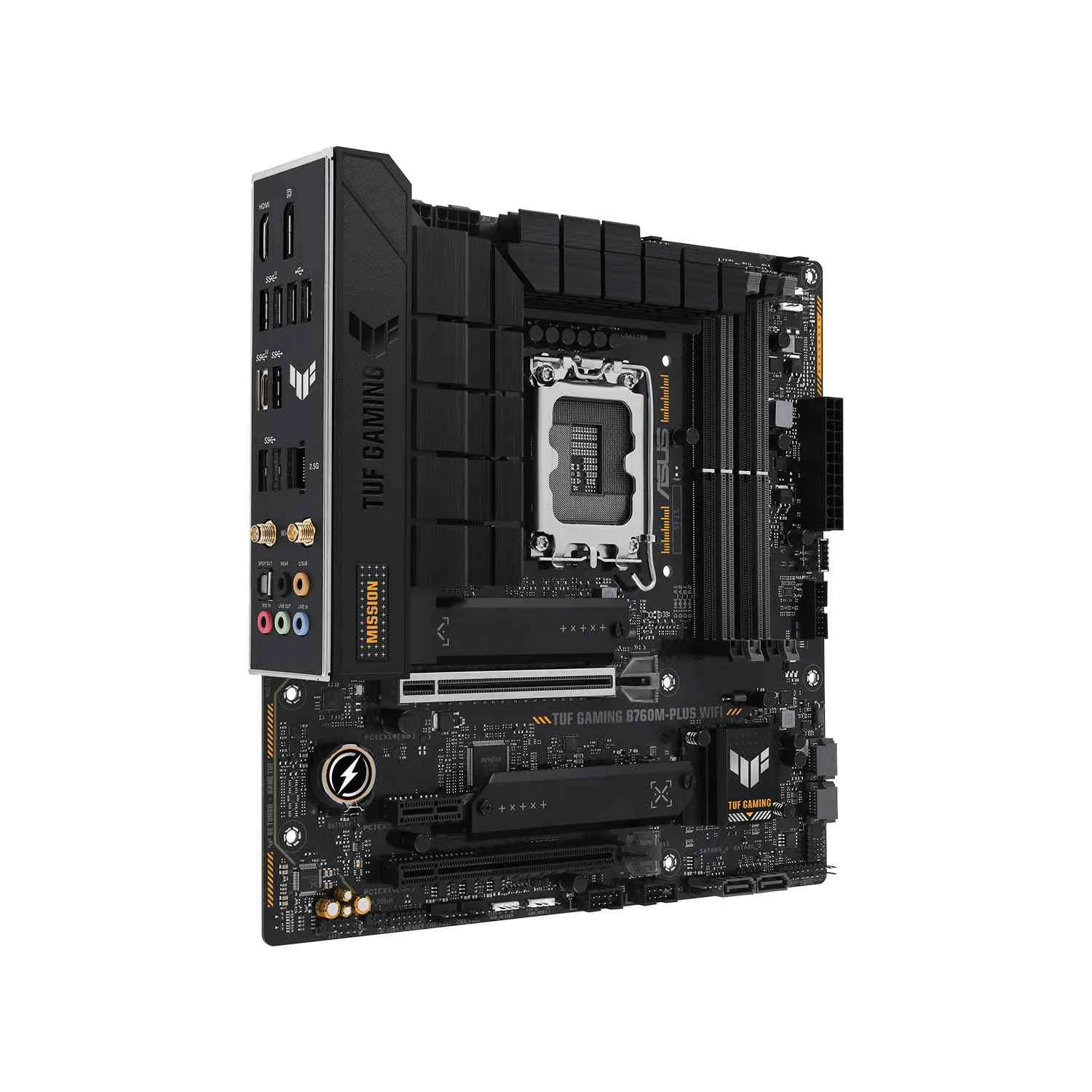

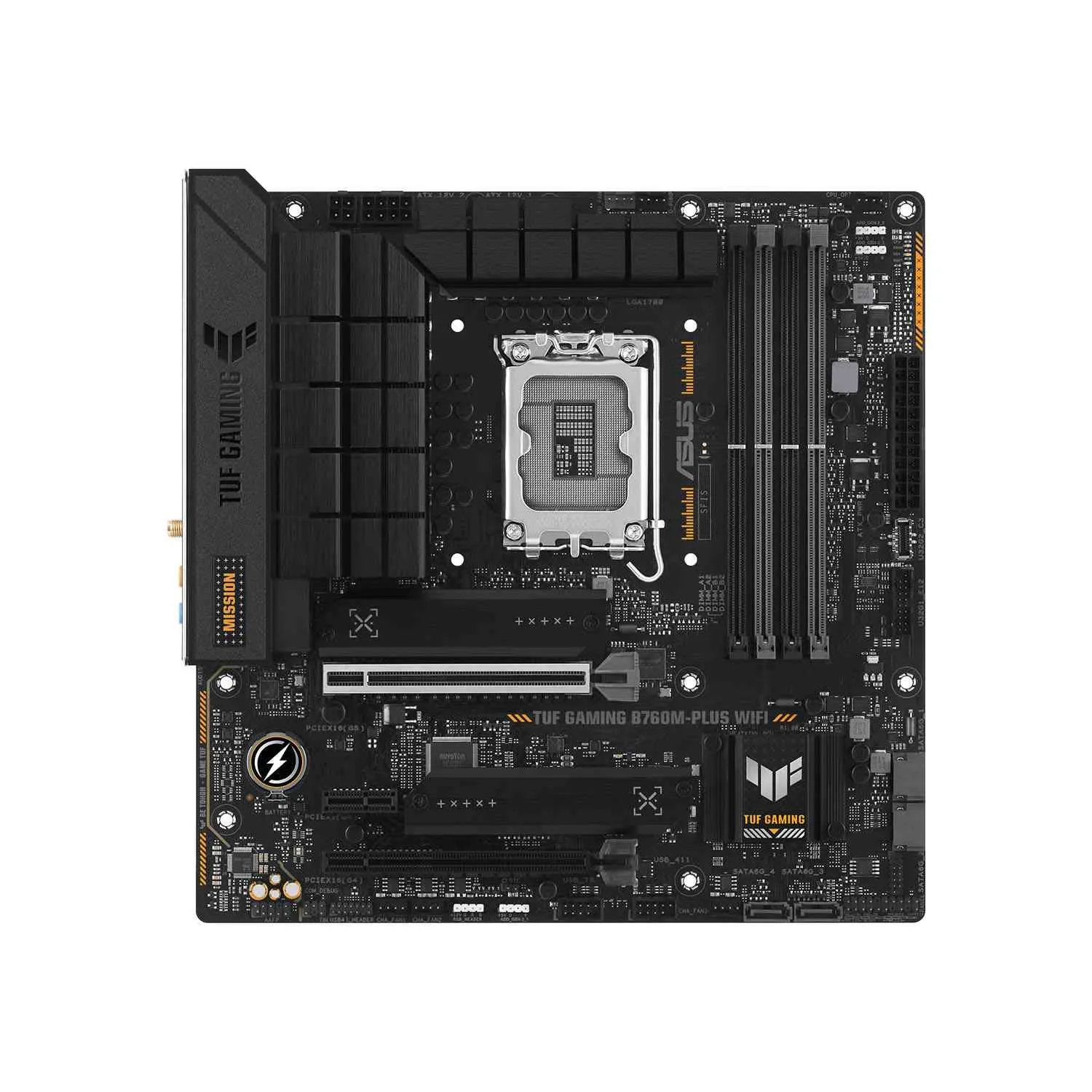

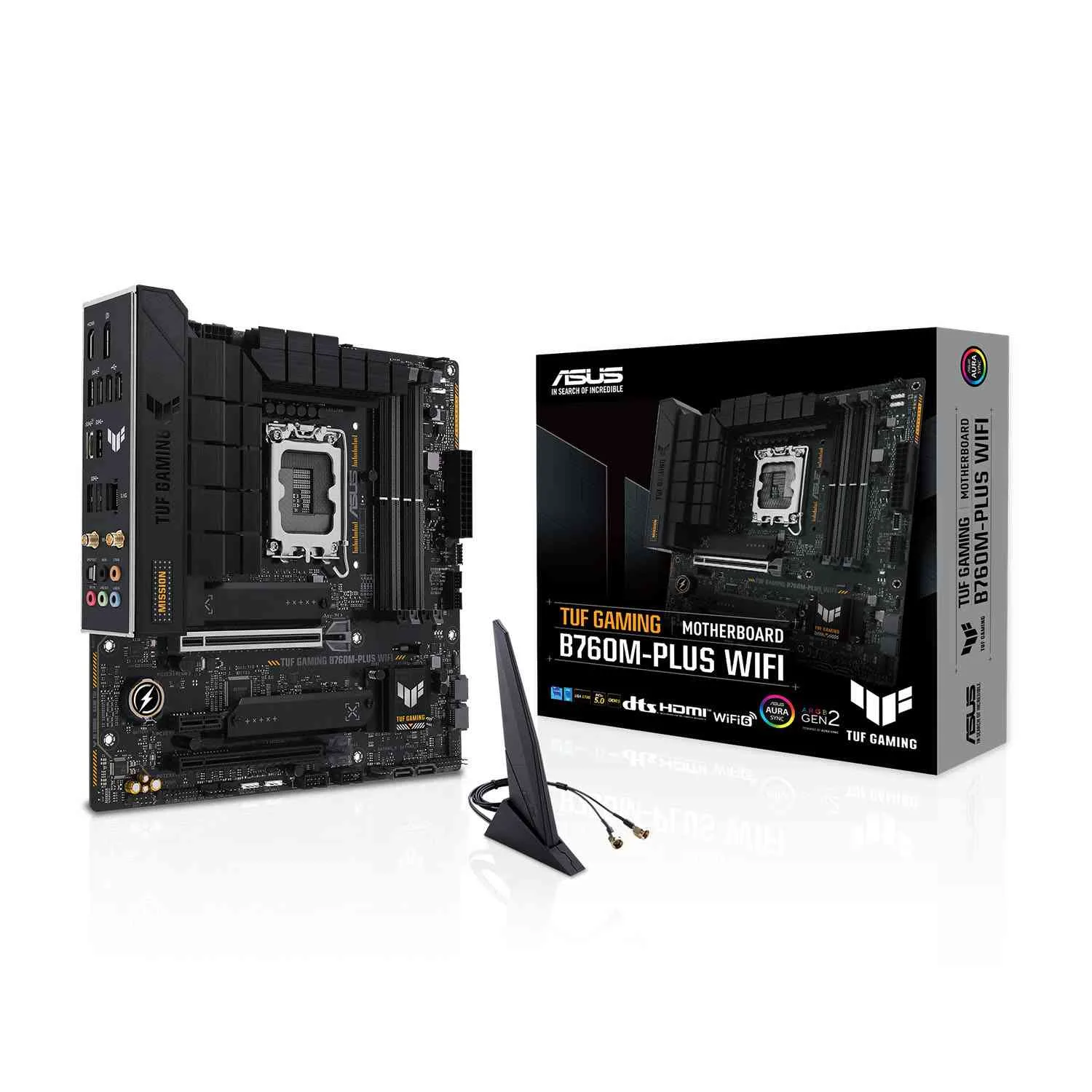

Asus Intel TUF B760M-PLUS WIFI DDR5 Gaming MotherBoard
The Asus Intel TUF B760M-PLUS WIFI DDR5 Gaming Motherboard features the Intel® B760 Chipset and mATX form factor. It supports Intel® Socket LGA1700 processors, accommodates up to 192GB DDR5 RAM, and includes connectivity options like Wi-Fi 6 and Bluetooth® v5.2
KWD 62.415
KWD 66.785
SKU :
90MB1ET0-M0EAY0
4 interest-free payments of KWD 16.696Learn more
Estimated delivery:1 work day
Free return within: 14 days of purchaseSecure shopping your data is always safeOverview
Built for the Right SetupThe Asus Intel TUF B760M-PLUS WIFI DDR5 Gaming Motherboard is designed for gamers seeking high performance and reliability. Motherboards |  |
 | Key Features That MatterThe main value comes from the listed specifications, real product images, and the practical use case of the product. You can compare it with gaming accessories and matching items before completing your order. |
Performance and Daily UseFeaturing the Intel® B760 Chipset and an mATX form factor, this motherboard measures 9.6 inches by 9.6 inches, making it a compact yet powerful choice for your gaming setup. For brand-specific browsing, check similar A2Z listings. |  |
 | Compatibility and Buying ConfidenceThe product details and specifications help you confirm compatibility before checkout. If you are building a complete setup, browse related PC gaming products and accessories available at A2Z Mega Store. |
A2Z Mega Store SelectionA2Z Mega Store keeps product pages structured with images, specifications, and useful internal links so customers can move from one item to the right matching category without guessing. |  |
 | What to Check Before OrderingReview the model number, part number, compatibility, dimensions, warranty, and package contents in the specifications below. These details are the safest way to confirm that the product matches your device, setup, or intended use. |
Key Specifications
- Model NoAsus Intel TUF Gaming B760M-PLUS WIFI DDR5 MotherBoard
- Part No90MB1ET0-M0EAY0ChipsetIntel® B760 ChipsetForm FactormATX Form Factor9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )Socket
- CompatibilityIntel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
- Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.Ethernet1 x Realtek 2.5Gb EthernetTUF LANGuardWireless & BluetoothWi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth® v5.2*Memroy Type4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered
- Memory*Dual Channel
- Memory ArchitectureSupports Intel® Extreme
- Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- CompatibilityTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen
- ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid
- Storage Technology supports SATA RAID 0/1/5/10.
- Graphics1 x DisplayPort**1 x HDMI™port****
- Graphics specifications may vary between CPU types.** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1.USB PortsRear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)2 x USB 3.2 Gen 2 ports (2 x Type-A)3 x USB 3.2 Gen 1 ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports)1 x USB 3.2 Gen 2 connector (supports USB Type-C®)*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports*Expansion SlotsIntel® 13th & 12th Gen

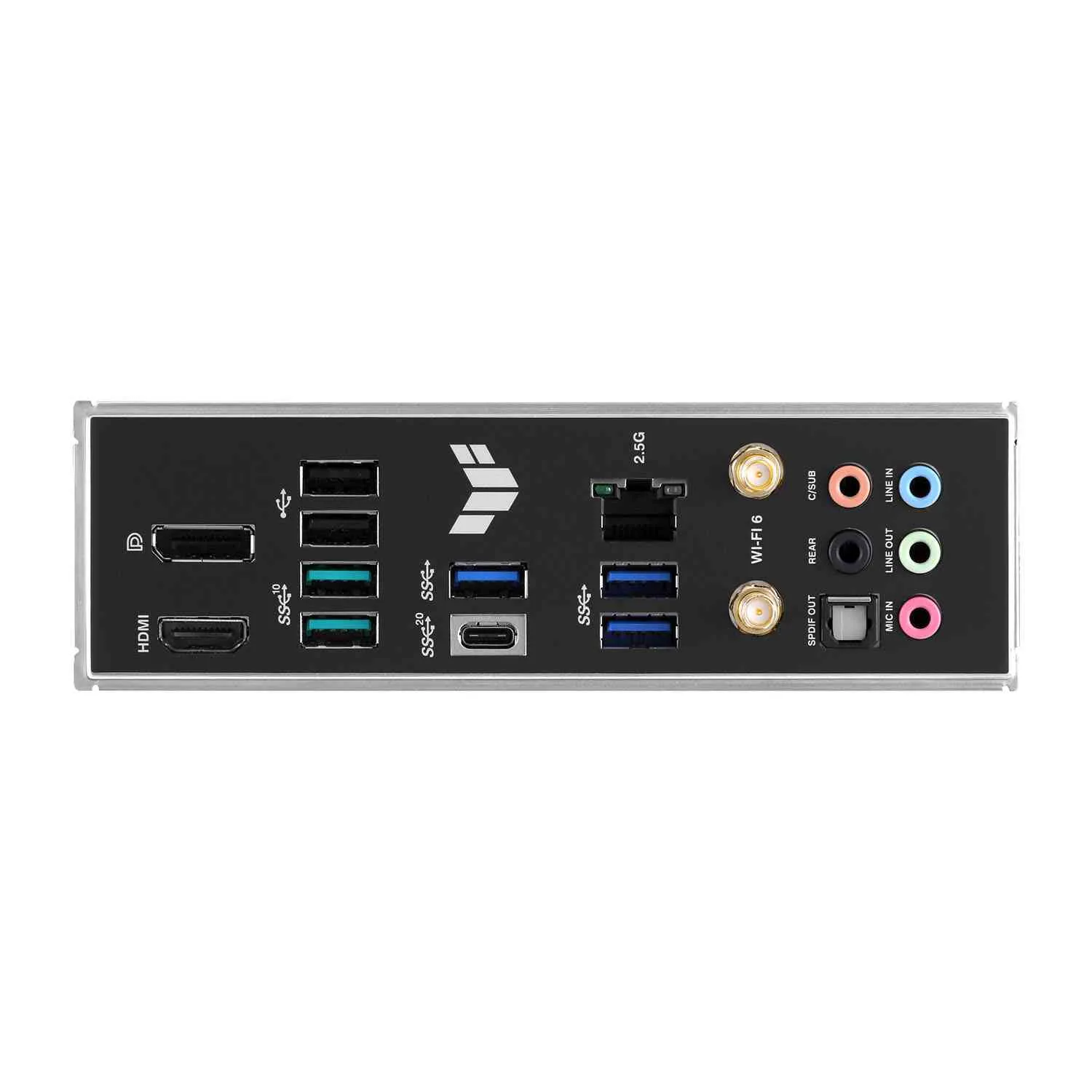

- Processors1 x PCIe 5.0 x16 slotIntel® B760 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slotAudioRealtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback "Audio Features - Audio Shielding- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layersBack Panel I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)2 x USB 3.2 Gen 2 ports (2 x Type-A)3 x USB 3.2 Gen 1 ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort1 x HDMI™ port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks 1 x Optical S/PDIF out portInternal I/O ConnectorsI/O Connectors Fan and
- Cooling related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headers
