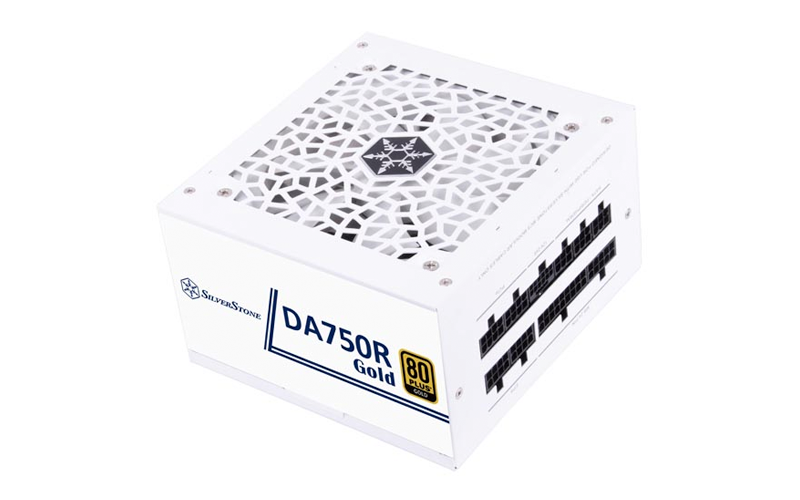

Silver Stone Decathlon Series DA750R 80PLUS Gold Fully Modular ATX 3.0 PCIe Gen5 750W Power Supply - White

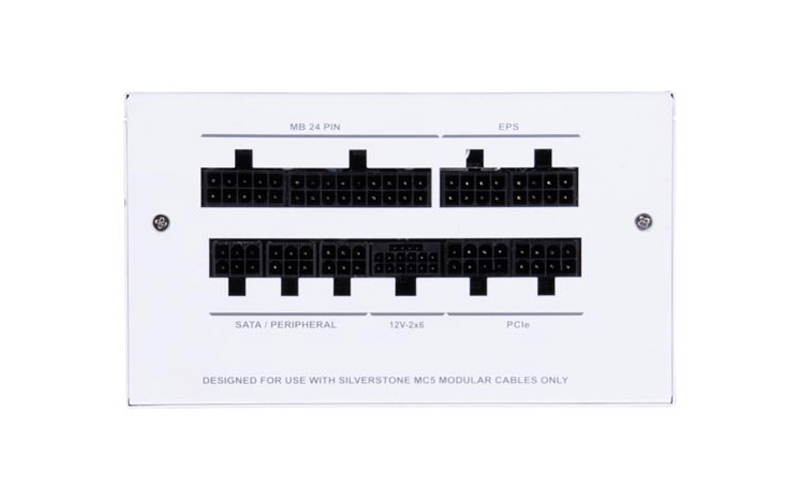

Model No : Silver Stone Decathlon Series DA750R 80PLUS Gold Fully Modular ATX 3.0 PCIe Gen5 750W Power Supply - White Part No : SST-DA750R-GMA-WWW Power : 750W Efficiency Standard : 80 PLUS Gold Modularity : Fully Modular Color : White PSU Form Factor : ATX (PS2) Fan : Silent 120mm fan Protection Features : Over Current ProtectionOver Power ProtectionOver Voltage ProtectionShort Circuit ProtectionOver Temperature ProtectionUnder Voltage Protection Load Range : Output : +3.3V +5V +12V +5VSB -12VMax.(Amps) : 20A 20A 62.5A 3A 0.3AMin.(Amps) : 0A 0A 0A 0A 0ARange (%) : ±3% ±3% +5%-7% ±5% ±8%Line Reg.(%) : ±1% ±1% ±1% ±1% ±1%Ripple(mVp-p) : 40mV 40mV 80mV 40mV 80mV Input Voltage : 90 ~ 264 Vrms Input Frequency Range : 47Hz ~ 63Hz PFC : Active PFC (PF>0.9 at full load) MTBF : 100,000 hours Special Features : 80 PLUS Gold efficiency certificationEquipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX3.0/3.1 specification standardLatest PCIe Gen 5 standard to support up to 2X power excursion24/7 continuous power output with 50℃operating temperatureSilent running 120mm fan with advanced semi-fanless operationCompact design with a 140mm depth for easy integration Connectors : 1 x 24 / 20-Pin motherboard connector2 x 8 / 4-Pin EPS / ATX 12V connector4 x 8 / 6-Pin PCIe connectors1 x 12V-2x6 connector8 x SATA connectors4 x 4-Pin Peripheral connector※ DA750R-GMA/DA750R-GMA-WWW are not compatible with PP05-E and PP06 cables. Dimension : 150mm (W) × 86mm (H) × 140mm (D)5.91" (W) x 3.39" (H) x 5.51" (D) Weight : 2.08kg Warranty : 1 Year ( As per Manufacturer Policy )
