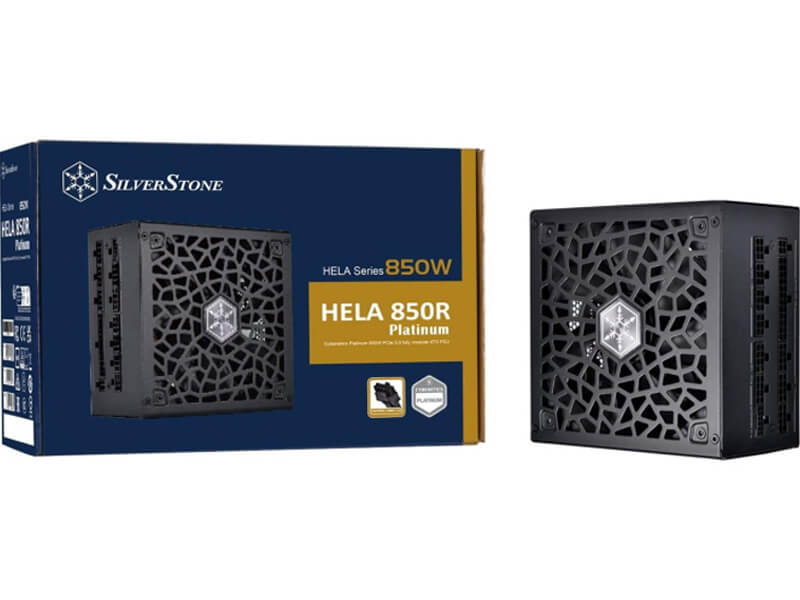

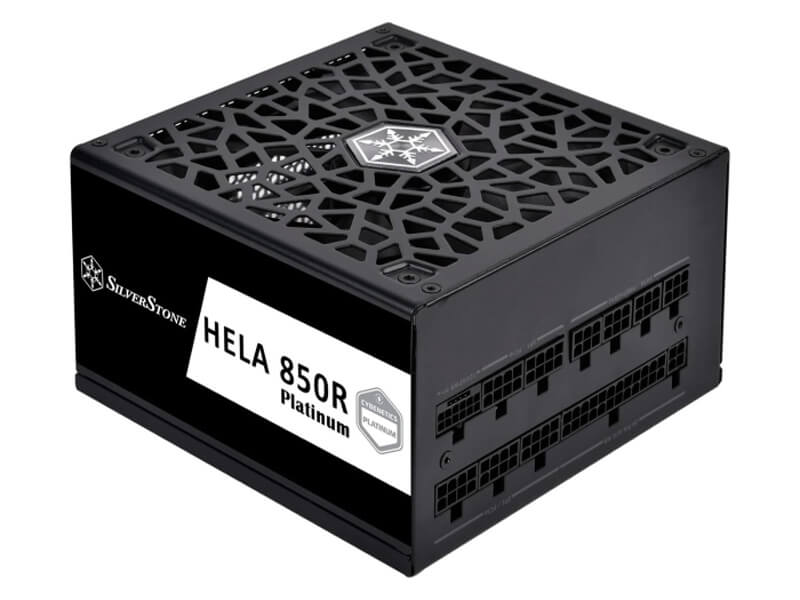

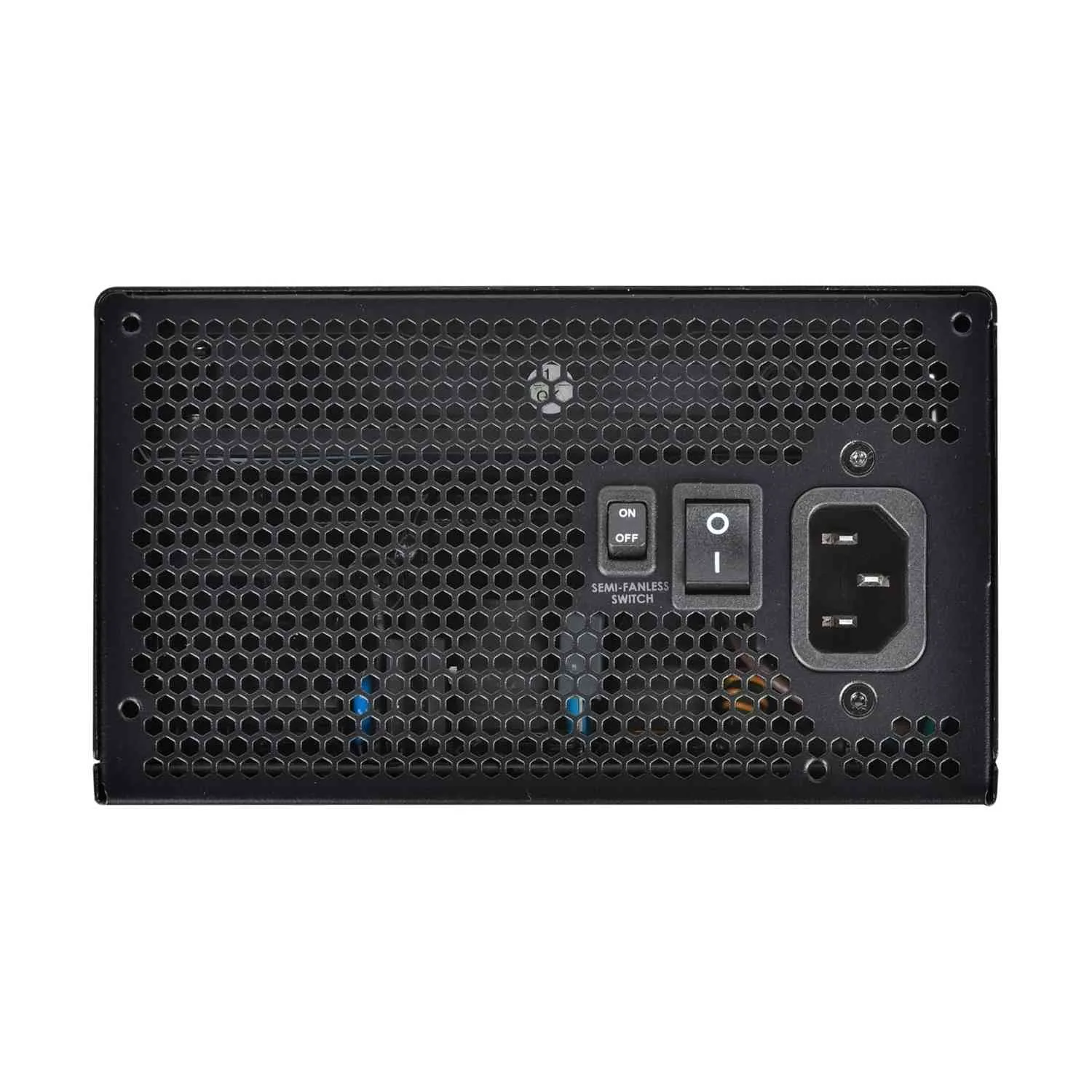

Silver Stone Hela Series 850R Cybenetics Platinum Fully Modular ATX PCIe 5.0 850W Power Supply

Model No : Silver Stone Hela Series 850R Cybenetics Platinum Fully Modular ATX PCIe 5.0 850W Power Supply Part No : SST-HA850R-PM Power : 850W Efficiency Standard : Cybenetics Platinum Modularity : Fully Modular Color : Black PSU Form Factor : ATX (PS2) Fan : Silent 135mm FDB fan Protection Features : Over Current ProtectionOver Power ProtectionOver Voltage ProtectionOver Temperature ProtectionShort Circuit ProtectionUnder Voltage Protection Load Range : Output : +3.3V +5V +12V +5VSB -12VMax.(Amps) : 22A 22A 70.8A 3.0A 0.3AMin.(Amps) : 0A 0A 0A 0A 0ARange (%) : ±5% ±5% +5/-7% ±10% ±5%Line Reg.(%) : ±1% ±1% ±1% ±1% ±1%Ripple(mVp-p) : 40mV 40mV 80mV 40mV 80mV Input Voltage : 90 ~ 264 Vrms Input Frequency Range : 47Hz ~ 63Hz PFC : Active PFC (PF>0.9 at full load) MTBF : 100,000 hours Connectors : 1 x 24 / 20-Pin motherboard connector2 x 8 / 4-Pin EPS / ATX 12V connectors1 x 12+4-Pin 12VHPWR connector5 x 8 / 6-Pin PCIe connectors8 x SATA connectors6 x 4-Pin Peripheral connectors2 x 4-Pin Floppy connectors Dimension : 150 mm (W) x 86 mm (H) x 150 mm (D)5.91" (W) x 3.39" (H) x 5.91" (D) Weight : 2.56 kg Warranty : 1 Year ( As per Manufacturer Policy )
