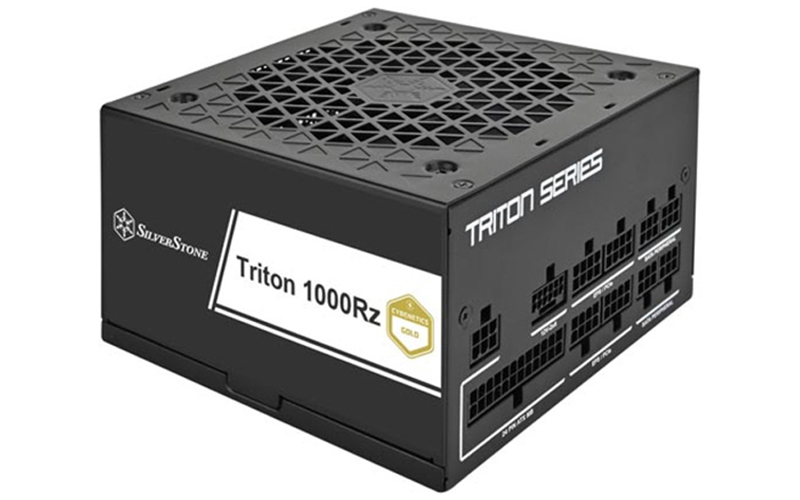

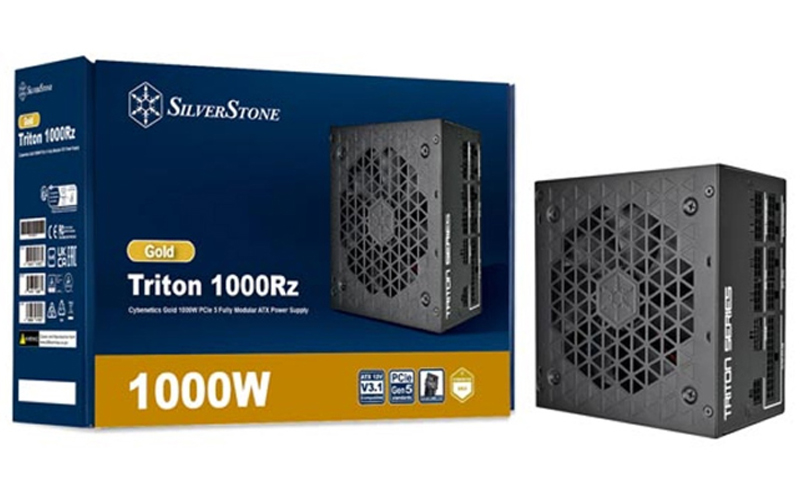

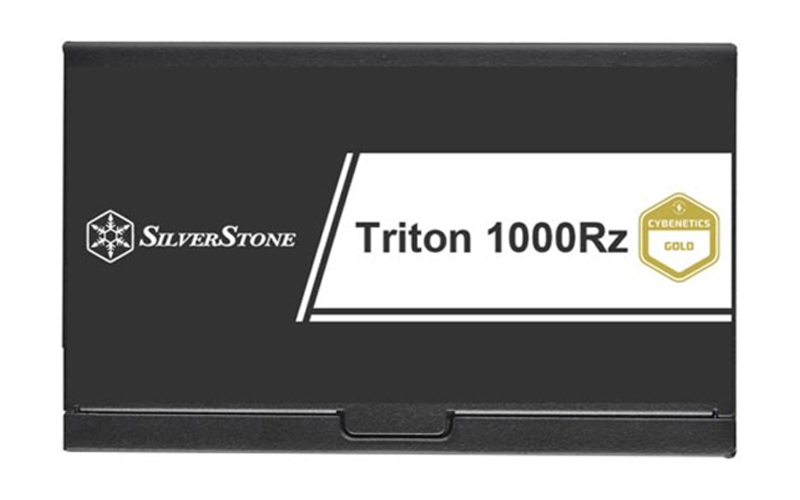

Silver Stone Triton 1000Rz Cybenetics Gold Fully Modular ATX 3.1 PCIe Gen5 1000W Power Supply - Black

Model No : Silver Stone Triton 1000Rz Cybenetics Gold Fully Modular ATX 3.1 PCIe Gen5 1000W Power Supply - Black Part No : SST-TR1000R-GM Power : 1000W Efficiency Standard : 80 PLUS Cybenetics Gold Modularity : Fully Modular Color : Black PSU Form Factor : ATX (PS2) Fan : Single 120mm FDB fan Noise Level : 18 dBA min. Protection Features : Over power protectionOver current protectionOver voltage protectionShort circuit protectionOver Temperature protection Load Range : Output : +3.3V +5V +12V1 +5VSB -12VMax.(Amps) : 18A 18A 70.8A 3.0A 0.3AMin.(Amps) : 0A 0A 0A 0A 0ARange (%) : ±5% ±5% ±5% ±5% ±10%Line Reg.(%) : ±1% ±1% ±1% ±1% ±1%Ripple(mVp-p) : 50mV 50mV 120mV 50mV 120mV Input Voltage : 90 ~ 264 Vrms Input Frequency Range : 47Hz ~ 63Hz PFC : Active PFC（PF>0.9 at full load） MTBF : 100,000 hours Connectors : 1 x 24 / 20-Pin motherboard connector2 x 8 / 4-Pin EPS / ATX 12V connector1 x 12+4-Pin 12V-2x6 connector4 x 8 / 6-Pin PCIe connector8 x SATA connector4 x 4-Pin Peripheral connector Special Features : Equipped and compatible Intel ATX 3.1 specification standard with Gen5 12V-2x6 PCIe connectorLatest PCIe Gen 5 standard to support up to 2X power excursionSilent running 120mm FDB cooling fanBlack embossed cable design.Full Japanese electrolytic capacitorsHigh efficiency with Cybenetics Gold certification24/7 continuous power output with 40℃ operating temperatureCompact design with a 140mm depth for easy integration Dimension : 150mm (W) x 86mm (H) x 140mm (D)5.91" (W) x 3.39" (H) x 5.51" (D) Weight : 2.7 kg Warranty : 1 Year ( As per Manufacturer Policy )
