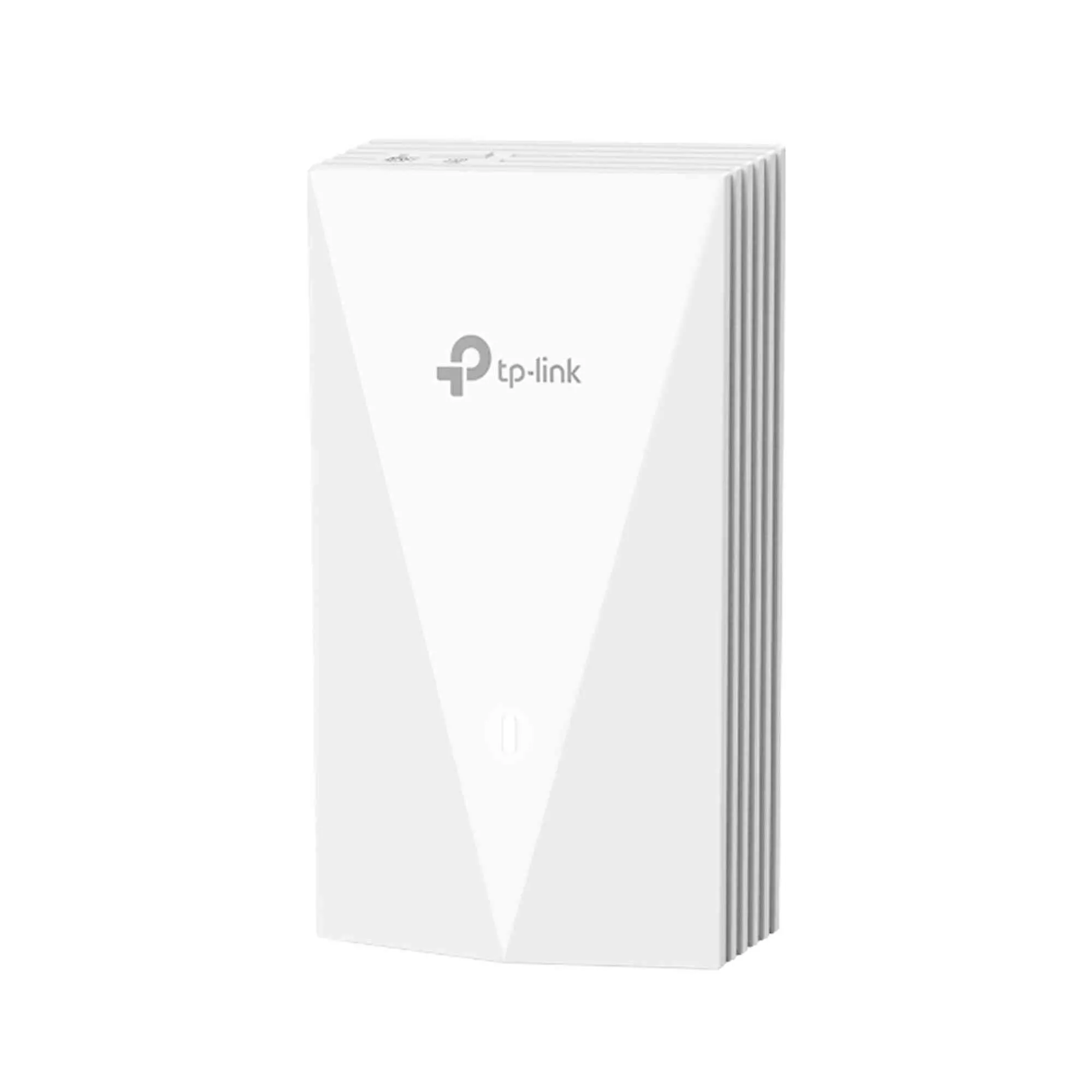

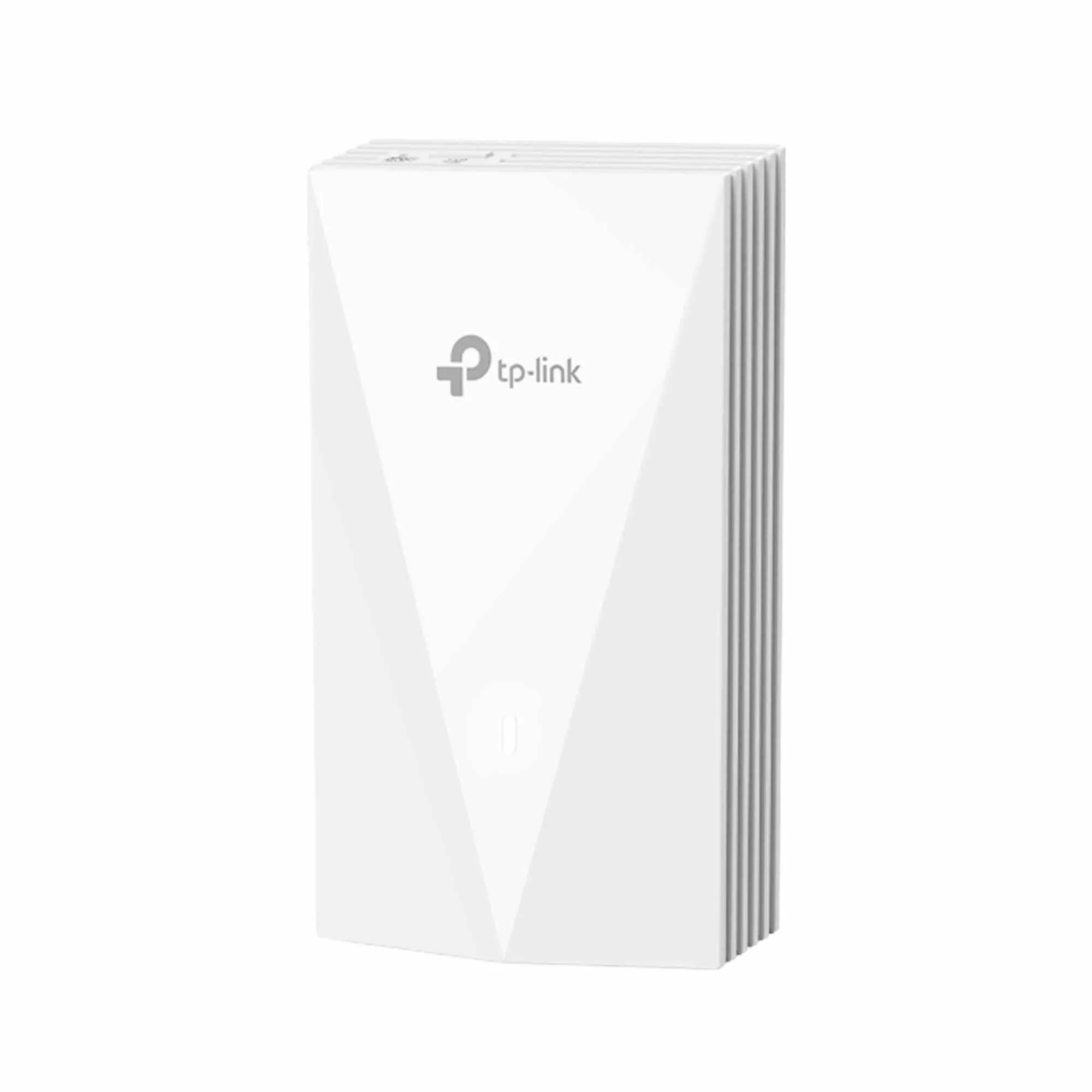

TP-Link AX3000 Wall Plate WiFi 6 Access Point

Model No : TP-Link AX3000 Wall Plate WiFi 6 Access Point Part No : EAP655-Wall Interface : Uplink: 1× 10/100/1000 Mbps Ethernet PortDownlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.) Button : Reset, LED Power Supply : 802.3af/at PoE Power Consumption : EU: 12W (802.3at PoE, PoE Out off)US: 12.6W (802.3at PoE, PoE Out off) Antenna Type : 2 Dual-Band Antennas• 2.4 GHz: 2× 3 dBi• 5 GHz: 2× 5 dBi Mounting : Wall Plate Mounting (Kits included) Wireless Standards : IEEE 802.11ax/ac/n/g/b/a Frequency : 2.4 GHz and 5 GHz Signal Rate : 5 GHz: Up to 2402 Mbps2.4 GHz: Up to 574 Mbps Wireless Functions : 16 SSIDs (Up to 8 SSIDs on each band)• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control (Adjust Transmit Power on dBm)• QoS(WMM)• Seamless Roaming§• Beamforming• Rate Limit• Load Balance• Airtime Fairness• Band Steering• Reboot Schedule• Wireless Schedule• RADIUS Accounting• MAC Authentication• Wireless Statistics• Static IP/Dynamic IP Transmission Power : CE:<20 dBm (2.4GHz, EIRP)<23 dBm (5GHz band1 & 2, EIRP)<26 dBm (5GHz band3, EIRP)FCC:< 21 dBm (2.4 GHz)< 21 dBm (5 GHz) System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux Special Features : Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†Higher Network Efficiency: Deliver data to more devices at the same time with less lag.‡Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.§Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support. Dimension : 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in) Package contents : AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall• Installation Guide• Mounting Kits Warranty : 1 Year ( As per Manufacturer Policy )
