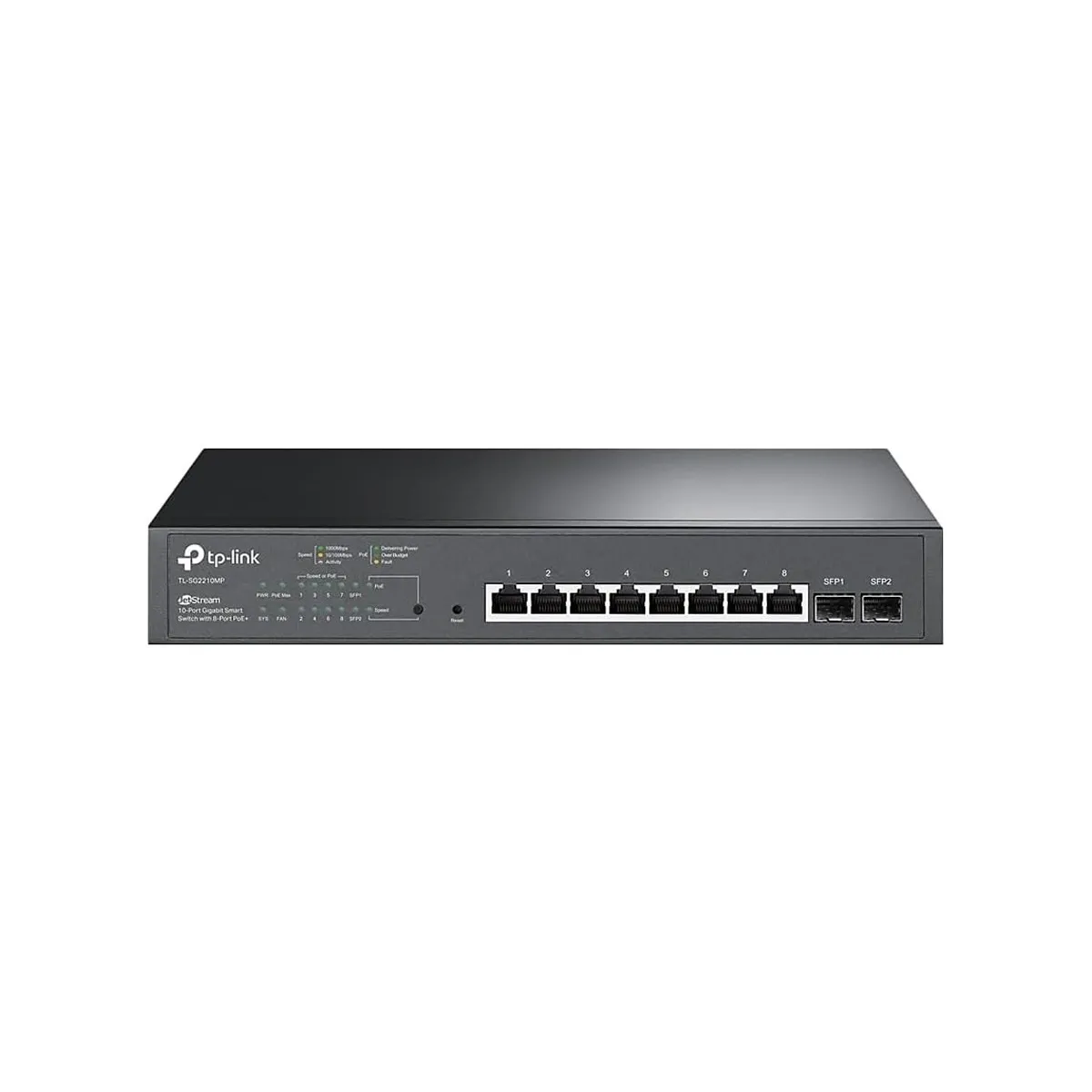

TP-Link JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

Model No : TP-Link JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+ Part No : SG2210MP Standards & Protocols : IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3af, 802.3at, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p Interface : 8 × 10/100/1000 Mbps RJ45 Ports (all support PoE+, Auto-Negotiation / Auto MDI/MDIX)2 × 100/1000 Mbps SFP Slots Network Media : 10BASE-T: UTP/STP Cat 3/4/5 (max 100 m)100BASE-TX / 1000BASE-T: UTP/STP Cat 5/5e or above (max 100 m)100BASE-FX / 1000BASE-X: MMF, SMF Fan / Cooling : 1 fan Physical Security : Security Lock Power Supply : 100-240 V AC, 50/60 Hz PoE Ports : Standard: 802.3at / 802.3afPoE+: 8 portsPoE Power Budget: 150 W Dimensions (W × D × H) : 294 × 180 × 44 mm (11.6 × 7.1 × 1.7 in) Mounting : Rackmount / Desktop Max Power Consumption : With 150 W PD connected: ~ 173.9 W (110 V / 60 Hz)With no PD: ~ 12.2 W Max Heat Dissipation : Without PD: ~ 41.63 BTU/hWith full PD: ~ 539.35 BTU/h Switching / Performance : Switching Capacity: 20 GbpsPacket Forwarding Rate: 14.9 Mpps MAC Address Table : 8 K entries Packet Buffer Memory : 4.1 Mbit Jumbo Frame : 9 KB Quality of Service (QoS) : 802.1p / DSCP priority 8 priority queues Priority schedule modes: SP, WRR Bandwidth control (port / flow) L2 / L2+ Features : DHCP Relay / VLAN Relay, Link Aggregation (static / LACP), STP / RSTP / MSTP, Loopback Detection, Flow Control, Port Mirroring, DLDP, LLDP / LLDP-MED Multicast / VLAN / IGMP / MLD : IGMP v1/v2/v3 Snooping, IGMP Querier, MVR, MLD v1/v2, Multicast filtering, static groups Advanced Features : Automatic discovery, batch configuration, firmware upgrade, network monitoring, event alerts, unified configuration, scheduled reboot VLAN / ACL / Security : VLAN (4K groups, 802.1Q, MAC VLAN, protocol VLAN, voice VLAN)ACL (up to 230 entries, time-range, port/MAC/IP rules)Security: 802.1X, IP/MAC binding, DHCP snooping, ARP/ND inspection, IP source guard, DoS defense, port isolation, SSL / SSH, rate limiting, etc. IPv6 Features : IPv6 static routing & ACL, dual IPv4/IPv6, IPv6 ACL, MLD snooping, neighbor discovery, ICMPv6, etc. Management / Interfaces : Web GUI, CLI (telnet), SNMP v1/v2c/v3, RMON, SDM templates, DHCP / BOOTP client, dual image / config, cable diagnostics, EEE, SNTP, system logs Omada / Cloud / SDN : Omada App support, cloud access, Zero-Touch Provisioning (ZTP) (Note: some versions (v2) do not support cloud controller) Certifications : CE, FCC, RoHS Package Contents : TL-SG2210MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet Operating Environment : Operating Temperature: 0 – 50 °C (32 – 122 °F)Storage Temperature: –40 – 70 °C (–40 – 158 °F)Operating Humidity: 10 – 90% RH (non-condensing)Storage Humidity: 5 – 90% RH Warranty : 1 Year ( As per Manufacturer Policy )
